Thin Wall Stainlesss Steel Keyserts (Inch) KSST

Thin Wall Stainlesss Steel Keyserts (Inch) KSST

  • $79.56 USD

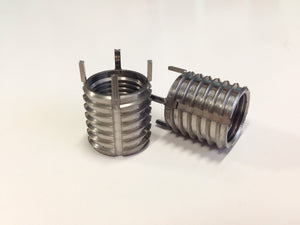

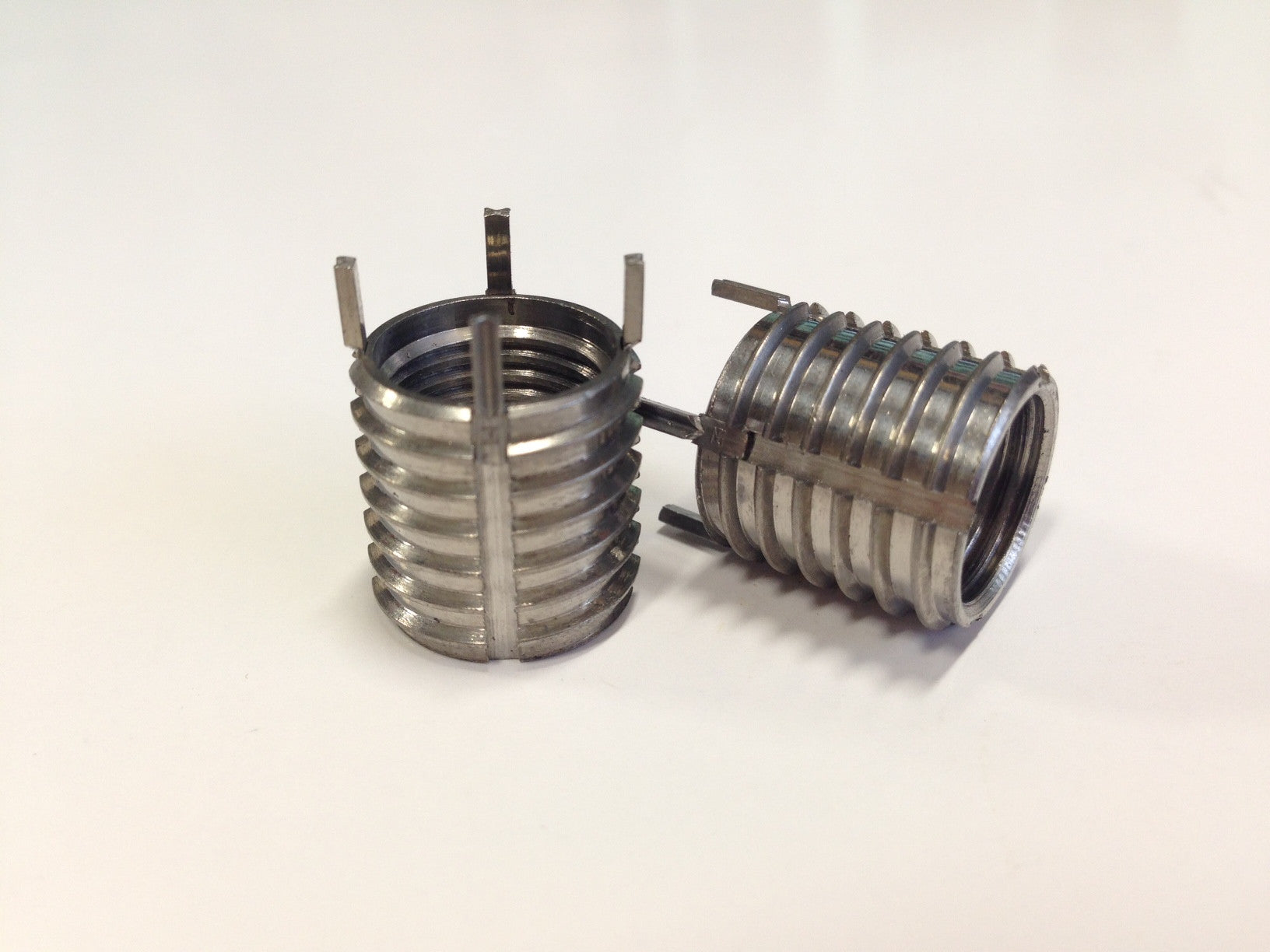

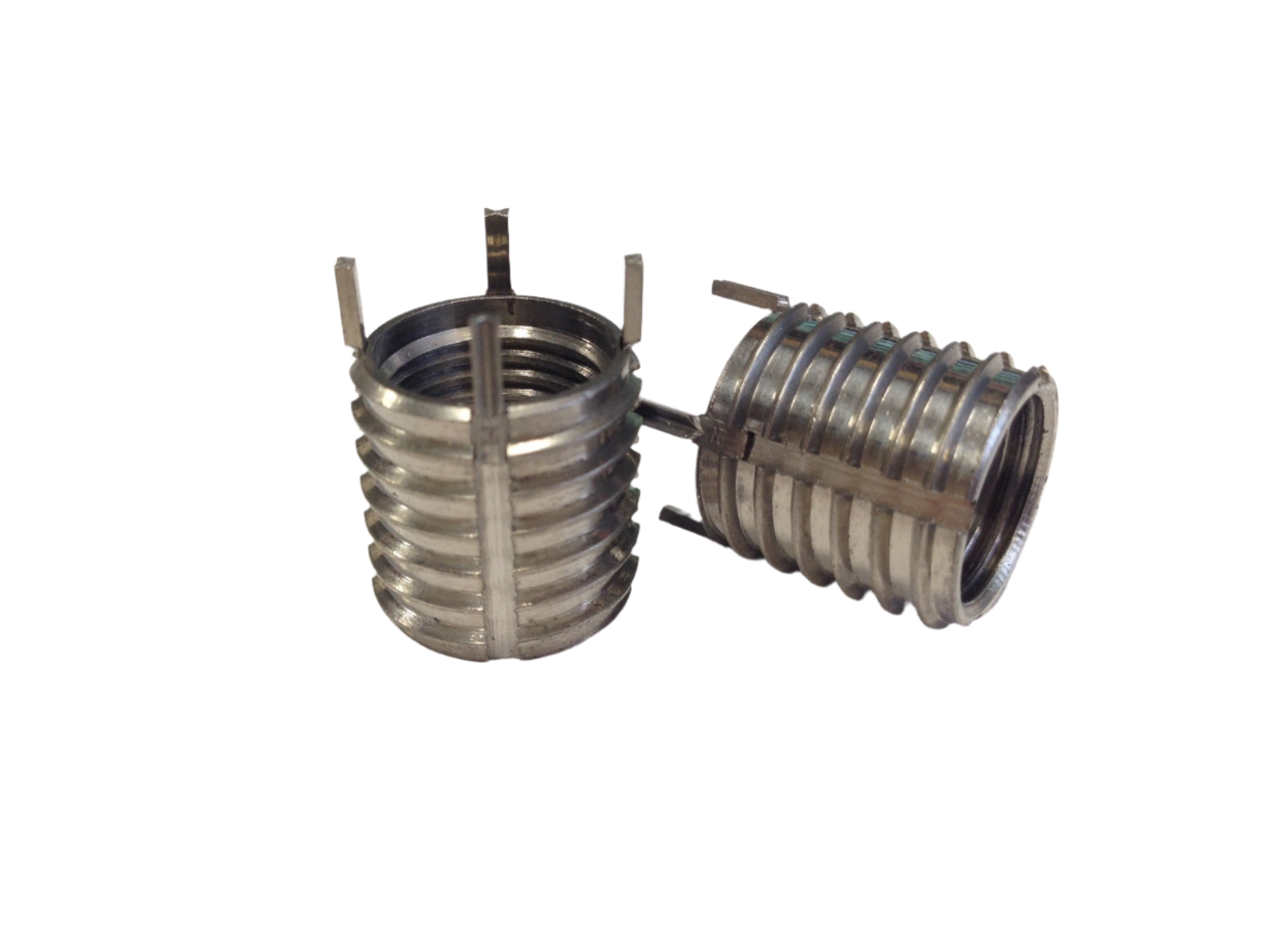

Keysert® Key-Locking Screw Thread Inserts



 please select a size from the pull down menu



  • Easy Installation
    Installed with standard drills and taps
    No pre-winder required
    No tang break-off.
  • Locking keys provide a positive mechanical lock, preventing rotation due to vibration or torsion.
  • Can be used in most materials
    Aluminum, magnesium, cast iron, cold rolled steel and plastic
  • Provide high strength and reliability. One length per size provides maximum pullout strength. Breaks Grade 8 bolts in test after test.
  • Easy to remove

  • No special skills required. Installation procedures can be learned in minutes



Internal Thread Size *External Thread Size (Mod.)
 KSST * For reference only

KSST10-24 5/16-18
KSST10-32
KSST1/4-20 3/8-16
KSST1/4-28
KSST5/16-18 7/16-14
KSST5/16-24
KSST3/8-16 1/2-13
KSST3/8-24
KSST7/16-14 9/16-12
KSST7/16-20
KSST1/2-13 5/8-11
KSST1/2-20
For more info click here
