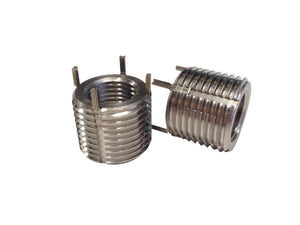

Heavy Duty Stainless Steel Keyserts (Metric) KSSHM
Keysert® Key-Locking Screw Thread Inserts
please select a size from the pull down menu
-
Easy Installation
Installed with standard drills and taps
No pre-winder required
No tang break-off. - Locking keys provide a positive mechanical lock, preventing rotation due to vibration or torsion.
-
Can be used in most materials
Aluminum, magnesium, cast iron, cold rolled steel and plastic - Provide high strength and reliability. One length per size provides maximum pullout strength. Breaks Grade 8 bolts in test after test.
- Easy to remove
- No special skills required. Installation procedures can be learned in minutes
Internal Thread Size | *External Thread Size (Mod.) |
KSSHM | |
KSSHM4x.7 | M8x1.25 |
KSSHM5x.8 | M10x1.25 |
KSSHM6x1 | M12x1.25 |
KSSHM8x1.25 | M14x1.5 |
KSSHM8x1 | |
KSSHM10x1.5 | M16x1.5 |
KSSHM10x1.25 | |
KSSHM12x1.75 | M18x1.5 |
KSSHM12x1.25 | |
KSSHM14x2.0 | M20x1.5 |
KSSHM14x1.5 | |
KSSHM16x2 | M22x1.5 |
KSSHM16x1.5 | |
KSSHM18x1.5 | M24x1.5 |
KSSHM20x2.5 | M30x2.0 |
KSSHM20x1.5 | |
KSSHM22x1.5 | M32x2.0 |
KSSHM24x3.0 | M33x2.0 |
KSSHM24x2 |
