R275M Metric Taper Pin Reamers, Sizes 2mm to 20mm

  • $83.31 USD


Series R275M, Straight Flute

H.S.S. Straight Flute Metric Taper Pin Hand Reamers

1:50 Taper

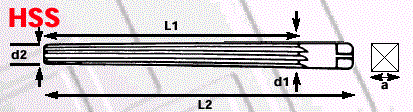

Part No.  Nom.
Dia.
mm
 Decimal
Equiv.
 d2
mm
 d1
mm
 L1
mm
 L2
mm
 Sq. a
mm
 No.
of
Flutes
R275M1.5
R275M2
R275M2.5
R275M3
R275M4
R275M5
1.50
2.00
2.50
3.00
4.00
5.00
0.0591
0.0787
0.0984
0.1181
0.1575
0.1969
1.4
1.9
2.4
2.9
3.9
4.9
2.14
2.86
3.36
4.06
5.26
6.36
37
48
48
58
68
73
57
68
68
80
93
100
1.8
2.24
2.80
3.15
4.00
5.00
 4
R275M6 6.00  0.2362 5.9 8.00 105 135 6.30  6


 Part No.  Nom.
Dia.
mm
 Decimal
Equiv.
 d2
mm
 d1
mm
 L1
mm
 L2
mm
 Sq. a
mm
 No.
of
Flutes
R275M8
R275M10
R275M12
R275M13
R275M14
R275M16
R275M20
8.00
10.00
12.00
13.00
14.00
16.00
20.00
0.3150
0.3937
0.4724
0.5118
0.5512
0.6299
0.7874
7.9
9.9
11.80
12.86
13.86
15.80
19.80
10.80
13.40
16.00
16.74
17.74
20.40
24.80
145
175
210
210
210
230
250
180
215
255
255
255
280
310
8
10
11.2
12.5
12.5
14
18
6
6
8
8
8
8
8
