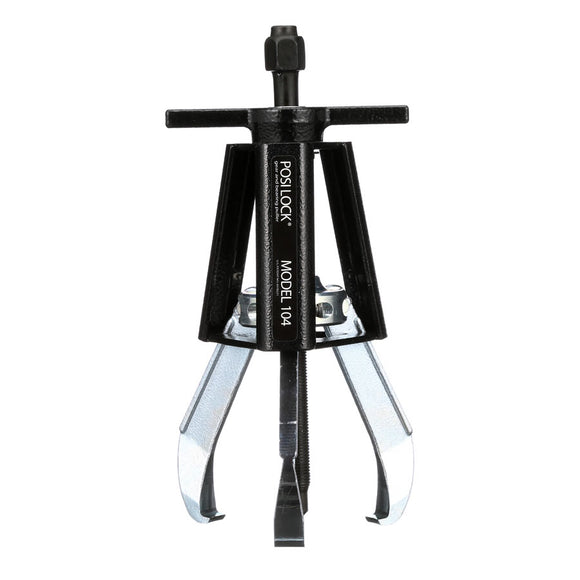

Model 104 - 5 Ton, 3 Jaw Puller
Please allow up to 1 week to ship

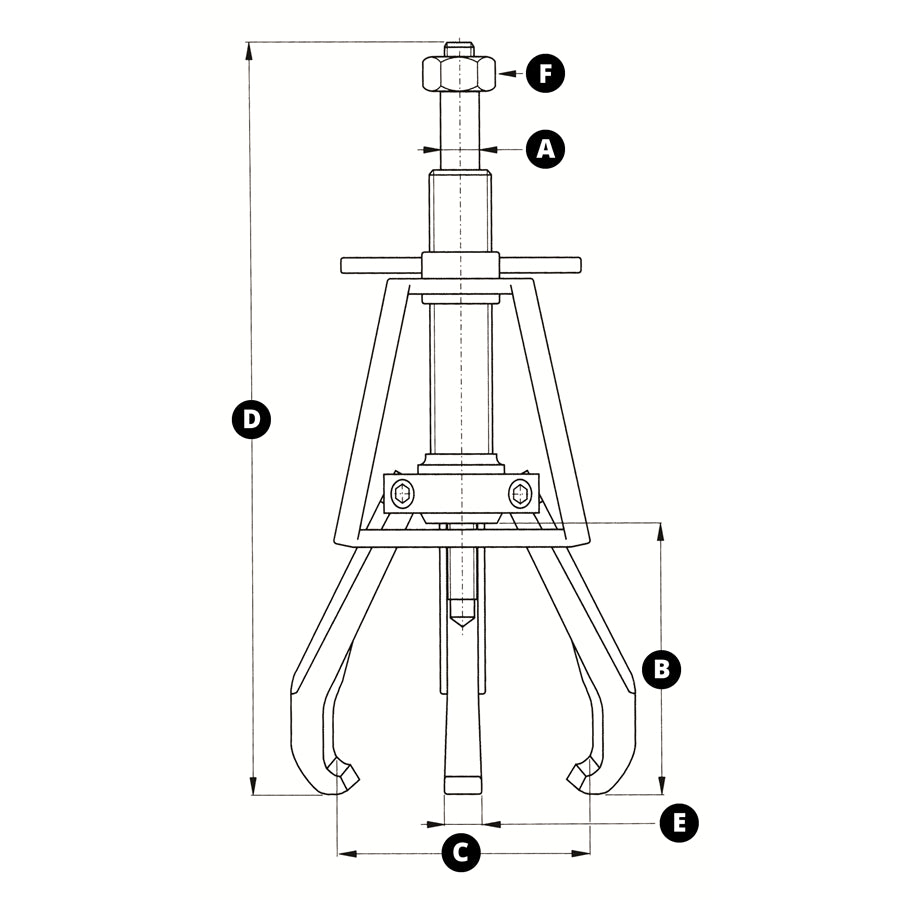

- Model 104
- Jaws: 3
- Capacity: 5 ton (44 kN)
- Reach (B): 4 in (102 mm)
- Spread Range (C): .5 to 5 in (13 to 127 mm)
- Weight: 4.1 lbs (1.9 kg)
- Center Bolt Diameter (A): .5 in (12.7 mm)
- Overall Length (D): 10.05 in (255.3 mm)
- Jaw Width (E): .62 in (15.8 mm)
- Hex Socket Size (F): .75 in (19 mm)
- Maximum Torque: 40 ft./lb. (54 N·m)
A general purpose puller that eliminates many specialty pullers and accessories such as: Harmonic Balance Puller, Battery Terminal Puller, Steering Wheel Puller, Power Steering and Alternator Pulley Pullers, Differential Side Bearing Puller, Brake Drum Puller, Timing Gear Puller, and Pitman Arm Puller
- Nut recessed to avoid mushrooming and disfiguration from impact.
- Cage to guide jaws for fast set up, solid contact and superior safety.
- T-handle locks jaw opening precisely where you set it.
- Leverage up front for vice-like power and no slippage.
- Center bolt threads designed for less effort to apply high torque.
