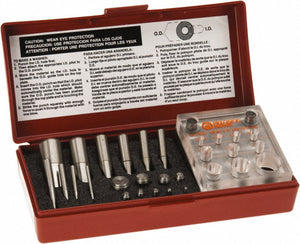

"Metric 10" TruPunch® Punch & Die Set 40300

"Metric 10" TruPunch® Punch & Die Set 40300

  • $1,186.44 USD

Makes customs shims in seconds.

The First "True Metric" Self-Centering Punch & Die with ten sizes!

  • PRECISION BRAND "Metric 10" TruPunch® makes perfect, "true metric size" custom washers, shims and gaskets in seconds
  • It's the only metric punch & die which will give you ten true metric size punches
  • Eliminates time and material wasted with conventional punch & dies
  • No guess work needed to center the I.D.
  • No need to scribe center lines
  • Exclusive, patented punch, pilot and pin system
  • Packaged in a durable plastic case
  • Ten punch sizes: 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 10mm, 12mm, 16mm & 20mm
  • Nine I.D. sizes: 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 10mm, 12mm, 16mm
  • Cuts steel, brass, copper, aluminum, rubber and plastic effortlessly up to .025"/.635mm thick
  • Cuts stainless and blue tempered shim up to .010"/.25mm thick
  • This set can produce 44 different ID and OD shim combinations
  • The base and punches are made of a hardened and ground A-2 tool steel


How to use the PRECISION BRAND® TruPunch®:
  1. Punch the I.D. hole first
  2. Attach the appropriate I.D. pilot to the O.D. punch
  3. Move the material so the I.D. hole is beneath the O.D. guide hole on the plastic top
  4. Insert the O.D. punch so that the I.D. pilot moves into the I.D.hole which should automatically center the material. Make sure the O.D. punch has been pushed completely through the plastic top and is touching the material
  5. Strike the punch squarely with enough force to penetrate the material with one blow
