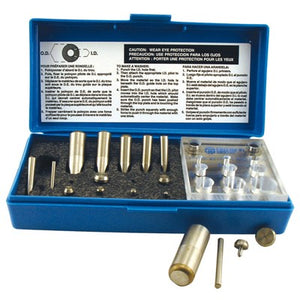

TruPunch® Punch & Die Set 40110

TruPunch® Punch & Die Set 40110

  • $1,049.85 USD

Makes customs shims in seconds.

The First Self-Centering Punch & Die

  • PRECISION BRAND TruPunch® makes perfect, custom washers, shims and gaskets in seconds
  • Eliminates time and material wasted with conventional punch & dies
  • No guess work needed to center the I.D.
  • No need to scribe center lines
  • Exclusive, patented punch, pilot and pin system
  • Packaged in a durable plastic case
  • Nine punch sizes: 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 5/8" and 3/4"
  • Eight I.D. sizes: 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" and 5/8"
  • Cuts steel, brass, copper, aluminum, rubber and plastic effortlessly up to .025" thick
  • Cuts stainless and blue tempered shim up to .010" thick
  • The base and punches are made of a hardened and ground A-2 tool steel

US Patent #4,949,614


How to use the PRECISION BRAND® TruPunch®:

  1. Punch the I.D. hole first
  2. Attach the appropriate I.D. pilot to the O.D. punch
  3. Move the material so the I.D. hole is beneath the O.D. guide hole on the plastic top
  4. Insert the O.D. punch so that the I.D. pilot moves into the I.D.hole which should automatically center the material. Make sure the O.D. punch has been pushed completely through the plastic top and is touching the material
  5. Strike the punch squarely with enough force to penetrate the material with one blow
