Inch Size Pi-Tapes from 1/4" to 228", O.D. Measuring Tapes
Please select a size from the pull down menu

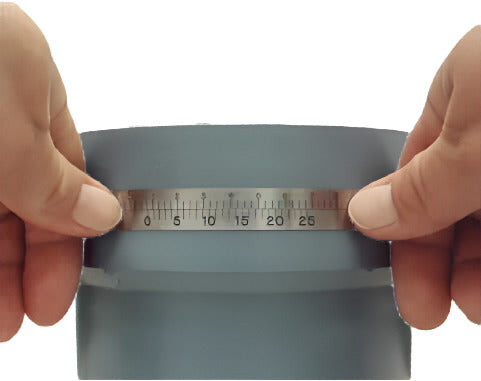

The periphery tape, provides a quick, accurate and easy method of reading true diameters of both round and out-of-round forms.
- Perfect for measurement of thin or soft walled parts - large or small.

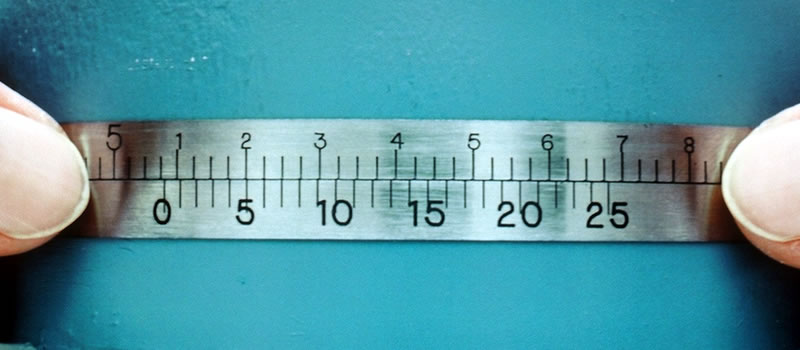

- Pi Tape gages consist of a narrow metal ribbon bearing special graduations.
These graduations are designed to convert circumferential distance into diameter measurement so the observer can read the diameter directly from the scale.
- Tapes are checked over master gages at .001'"(.03mm) accuracy for standard tapes up to 144" (3600mm).
Certificate of accuracy traceable to National Institute of Standards and Technology is furnished.
- Pi Tape gages are a precision tool made of 1095 clock spring steel .
They require a minimum of maintenance, but we do recommend a quick wipe with an oil moistened cloth after use. A light gun oil works very well.
Please visit this link for more info: http://www.newmantools.com/price/pipr02.htm
