Shaft Hog Laser Alignment System DIRIGO

Shaft Hog Laser Alignment System DIRIGO

$7,040.00 USD

Fast, Easy, Precise and Complete

The Shaft Hog puts laser alignment accuracy within reach of everyone!
  • Reduced machinery vibrations
  • Longer bearing life
  • Longer seal life
  • Fast and easy alignments

 System FEATURES:

• Ergonomically designed control unit fits comfortably in

  one hand

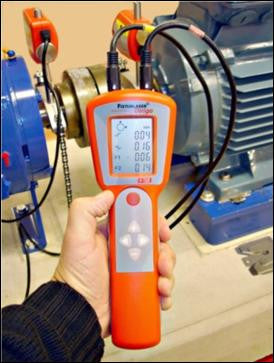

• Live display means that you will get instant feedback

   when shimming or moving the machine

• Eliminating the guesswork and back and forth

• Dirigo/Shaft Hog features a unique “laser line” instead of

   traditional laser dot

• Making setup and alignment much easier, as the line

   is wide and is easily projected to the laser detector

• Dirigo/Shaft Hog also features graduated labels on the

   laser heads that works with the “laser line”

• All movements of the motors are simultaneously

   display on the screen

• The measurement results are display with a resolution

   of 0,01 mm

• The position sensitive detectors precisely measure the

   misalignment

• The large LCD display clearly presents the position of the

   machinery being aligned



CONTENT:

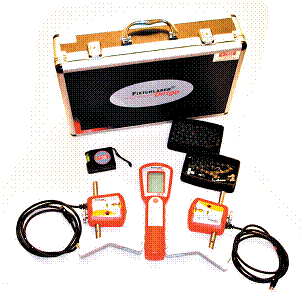

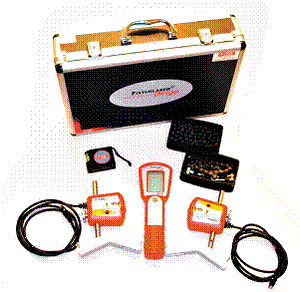

• 2 x Laser Transmitter/Detector Units, “Laser Line”

  10 mm detectors, X-Y bubble levels, integral cables

   with stress relief

• 1 x Carrying Case

• 1 x Display Box with Horizontal Shaft Alignment Program

• 2 x Mounting Brackets complete with chains

• 2 x Tapped Mounting Rods, 150 mm length

• 1 x Measuring Tape with bubble level

• 1 x Instruction Manual



Specifications:

MEASURING UNITS

Type of Laser : Diode laser

Laser wave length : 670-675 mm

Laser class : 2

Maximum laser power : 1 mW

Maximum distance between measuring units : 0,850 mm (2.8ft)

Type of detectors : Single axis PSD, 8.5 x 0.9 mm (0.3 x.04 in)



DISPLAY UNIT

Battery type : 2 x 1,5V LR14 Alkaline

Operating time : 20 hours continuous operation

Display resolution: 0,01 mm (0.1 mil in “inch” setting)



COMPLETE SYSTEM

Shaft Diameter range : 40 -150 mm (1.6 – 5.9 in)

Extension chain : 150- 500 mm (5.9 – 20 in)

Accuracy of system : Better than 2%

Température range : 0 à -40°C (32°- 104°F)

Operating humidity : ¢ 90%

Carrying case dimension : 390 X 340 X 95 mm

                                           (15.4 x 13.4 x 3.7 in)
