Special Size Screw Thread Repair Kits
Please select size from the pull down menu.
| Size | Part # | Insert Per Kit |
Drill Size | |
| MM | INCH | |||
| UNEF | ||||
| 1/4-32 | STK1/4-32 | 10 | 6.60 | 17/64 |
| HARLEY | ||||
| 1/4-24 | STK1/4-24 | 10 | 6.60 | 17/64 |
| 7/16-16 | STK7/16-16 | 5 | 11.50 | 29/64 |
| CARBURETOR | ||||
| 7/8-20 | STK7/8-20 | 5 | 7/8 | |
| 1-20 | STK1-20 | 10 | 1 | |
| CUMMINS-HEAD BOLT | ||||
| 11/16-16 | STK11/16-16 | 5 | 18.00 | 45/64 |
| BIKE PEDAL RH & LH |
||||
| 9/16-20 | STK9/16-20RHLH | 5RH, 5LH | DRILL NOT REQUIRED | |

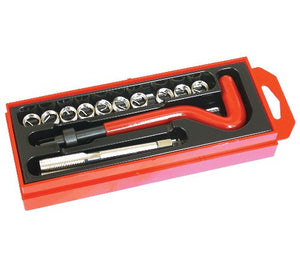

note: The Sets include a High Speed Steel Tap, Inserts and Installation/Tang Break Off Tool.
A drill is not included but the recommended size is listed.
