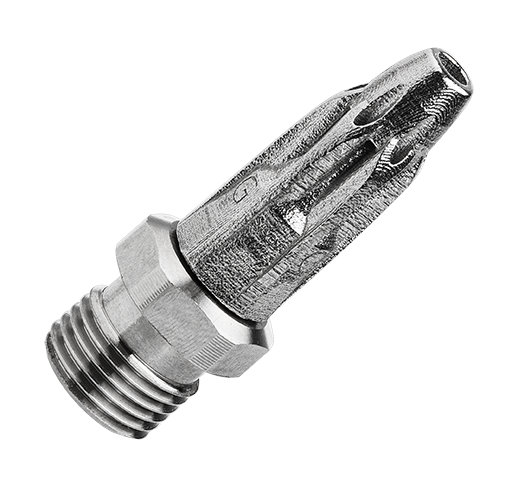

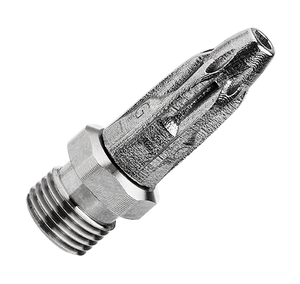

Silvent X01 Stainless Nozzle

SIL.X01 is a stainless steel blowing nozzle with patented multi Laval technology. The energy saving air nozzle is part of Silvent’s revolutionary new X-series. The nozzle in the new X series has a completely new and innovative design that creates a concentrated jet of air with reduced turbulence, thus enabling a more targeted, effective blowing force. Thanks to the newly patented technology, the air nozzle’s design optimizes the air pressure’s change from potential energy to aimed concentrated kinetic energy. This allows for maximal use of the air pressure. The unique design makes it possible to reduce noise levels during blowing by more than 10dB(A). The blowing nozzle is perfect for environments with high cleanliness requirements, such as the food industry. SILVENT X01 is patented and fulfils the OSHA safety standards and the EU Machinery Directive’s noise level requirements. The nozzle has a 1/8" outer connection.

Specifications

	SI units SPECIAL ORDER PLEASE CALL	US units
Blowing force	2.8 N	9.9 oz
Air consumption	14 Nm³/h	8.2 scfm
Sound level	78 dB(A)
Blowing pattern	Laval
Connection	G 1/8"	1/8"-27 NPT
Connection type	Male

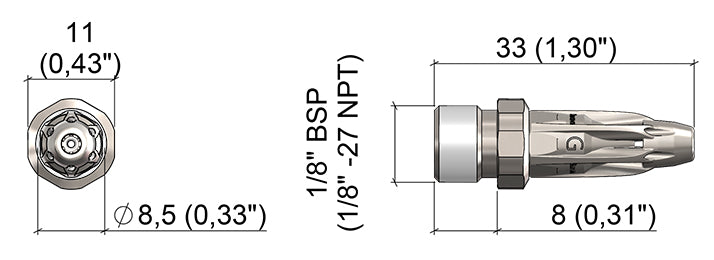

Dimensions	11x33 mm	0.43x1.3 inch
Material	Stainless steel
Weight	0.009 kg	0.020 lbs
Max temp	400 °C	752 °F
Max operating pressure	1.0 MPa	143.0 psi
Benefits
Replace open pipe	4 mm	5/32 inch
Noise reduction [dB(A)]	17 dB(A)	69 %
Air/cost savings [Nm³/h]	16 Nm³/h	53 %

Blowing properties at different pressures
SI units (kPa)	200	400	600	800	1000
Blowing force (N)	1.2	2.3	3.4	4.5	5.6
Air consumption (Nm³/h)	8.0	12.0	16.0	20.0	24.0
Sound level (dB(A))	72.0	76.0	79.0	82.0	84.0
US units (psi)	40	60	80	100	120
Blowing force (oz)	5.7	8.5	11.2	14.0	16.8
Air consumption (scfm)	5.2	6.8	8.4	10.0	11.6
Sound level (dB(A))	74.0	76.0	78.0	80.0	82.0
Air cone patterns and velocity distribution
SI units (mm)	50	100	200	300	400	500
Blowing pattern (ø)	20	35	60	90	120	150
US units (inch)	2	4	8	12	16	20
Blowing pattern (ø)	0.79	1.38	2.36	3.54	4.72	5.91
