Silvent MJ4 Stainless Nozzle

  • $110.00 USD


Please allow up to 1 week to ship



SIL.MJ4: micro-nozzle of stainless steel with central hole surrounded by slots. Generates a concentrated air stream while limiting both sound level and air consumption to a minimum. Small dimensions make this nozzle suitable for incorporation into most machine designs. Meets EU Machine Directive stipulations on airborne noise in machines.

Specifications

SI units

SPECIAL ORDER

PLEASE CALL

US units
Blowing force 0.9 N 3.2 oz
Air consumption 4 Nm³/h 2.4 scfm
Sound level 76 dB(A)
Blowing pattern Concentrated
Connection M4x0.5
Connection type Male

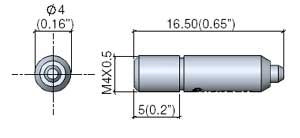

Dimensions Ø4x16.5 mm Ø0.16x0.65 inch
Material Stainless steel
Weight 0.001 kg 0.002 lbs
Max temp 400 °C 752 °F
Max operating pressure 1.0 MPa 143.0 psi

Benefits

Replace open pipe 2 mm 5/64 inch
Noise reduction [dB(A)] 8 dB(A) 43 %
Air/cost savings [Nm³/h] 4 Nm³/h 50 %
Meet the EU Machine directives Yes

Blowing properties at different pressures

SI units (kPa) 200 400 600 800 1000
Blowing force (N) 0.4 0.7 1.1 1.4 1.8
Air consumption (Nm³/h) 1.4 3.1 4.8 6.4 8.1
Sound level (dB(A)) 66.8 74.3 76.6 80.0 81.4
US units (psi) 40 60 80 100 120
Blowing force (oz) 1.9 2.7 3.6 4.5 5.4
Air consumption (scfm) 1.2 1.9 2.6 3.3 3.9
Sound level (dB(A)) 70.2 73.9 76.4 78.5 80.1

Air cone patterns and velocity distribution

SI units (mm) 50 100 200 300 400 500
Blowing pattern (ø) 12 24 45 65 88 110
Velocity (m/s) 129 104 57 40 36 33
US units (inch) 2 4 8 12 16 20
Blowing pattern (ø) 0.47 0.94 1.77 2.56 3.46 4.33
Velocity (ft/s) 423 341 187 131 118 108
