Silvent F1 Cooling Nozzle

  • $1,336.58 USD


Please allow up to 1 week to ship

SIL.F1 is a cooling nozzle with FRIGUS technology that is especially designed for spot cooling where unwanted heat occurs due to material milling, drilling, grinding, turning etc. Maintaining a reduced temperature during machining operations facilitates the process and extends tool life. F 1 generates a low noise level. Its revolutionary design is compact and the unit is simple to install. It is easy to replace your standard nozzle with a FRIGUS cooling nozzle. F 1 cools the target while blowing away chips and enhancing quality. FRIGUS technology provides the possibility to quickly and easily adjust both the air consumption and cold fraction you need. This simple, unique control design allows you to set air consumption in relation to your refrigeration requirements. F 1 also complies with the noise limitations of the EU Machine Directive and OSHA safety standards.

Specifications

SI units

SPECIAL ORDER

PLEASE CALL

US units
Air consumption 17 Nm³/h 10.0 scfm
Sound level 76 dB(A)
Blowing pattern Concentrated
Connection G 1/4" 1/4"-18 NPT
Connection type Female

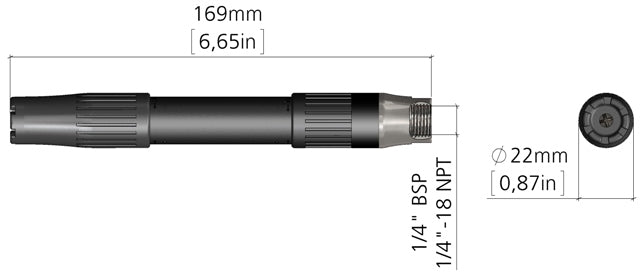

Dimensions Ø22 x 169 mm Ø0.87 x 6.65 inch
Material Zytel
Weight 0.085 kg 0.187 lbs
Max temp 120 °C 248 °F
Refrigeration 110 kcal/h 436 Btu/h
Temperature reduction 38 68.4
Max operating pressure 1.0 MPa 143.0 psi

Benefits

Replace open pipe 3 mm 1/8 inch
Noise reduction [dB(A)] 14 dB(A) 62 %
Meet the EU Machine directives Yes

Blowing distance


To obtain best cooling effect from the cooling nozzle, use as short blowing distance as possible from the nozzle to the object. Recommended max blowing distance = 30 mm (1.18").
