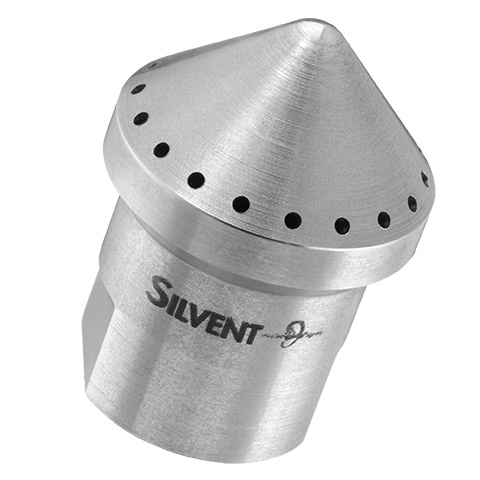

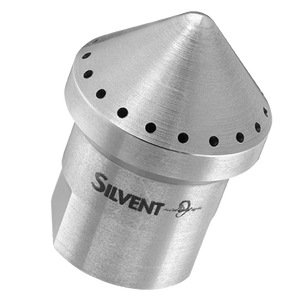

Silvent 915 Nozzle

  • $212.00 USD


Please allow up to 1 week to ship

SIL.915: dispersion nozzle that generates a broad and circular air cone pattern. Designed for applications where air must be spread over a greater area at a short blowing distance. Works best when the blowing distance does not exceed 150 mm (6"). When blowing inside pipe and ducts the inside diameter should be between Ø 25 - 100 mm (1" - 4"). The standard exhaust angle is 45°. However, the design of the nozzle permits the angle of the exhaust holes to be modified. Upon request, angles of 90° or 135° are available. Low noise level and air consumption.



Technical data (US)

Replace open pipe Ø (inch) 1/4
Blowing force 1.2 lbs
Air consumption (scfm) 22.4
Sound level (dB(A)) 86
Nozzle technology Hole
Material (nozzle) 1.4305 (303)
Connection NPT 1/4"
Connection type Female
Weight (lbs) 0.044
Max temp. (°F) 752
Max op. pressure (psi) 145

Benefits when replacing an open pipe

Replace open pipe Ø (inch) 1/4
Noise reduction 16 [dB(A)] 67%
Energy savings 17.1 [scfm] 43%

Material specification: EN 1.4305

Blowing properties at different pressures

Pressure (psi) 40 60 80 100 120
Blowing force (oz) 10.1 15.8 21.5 27.2 32.9
Air consumption (scfm) 15.2 20.0 24.8 29.7 34.5
Sound level (dB(A)) 82.0 85.4 87.8 89.7 91.2
