Silvent 912 Nozzle

Silvent 912 Nozzle

$702.00 USD

Please allow up to 1 week to ship

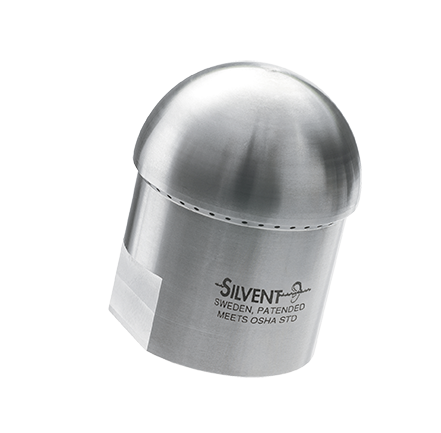

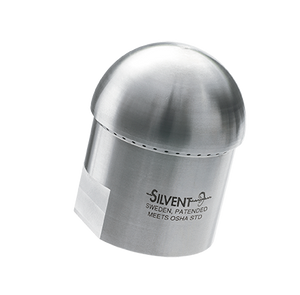

SIL.912: SILVENT 912 is a larger variation of 910. Manages blow-out of pipe with diameters from 75 mm (3") up to 400 mm (16"). 1" female connection thread. Blowing force 13.2 N (46.6 oz).

Specifications

SI units

SPECIAL ORDER

PLEASE CALL

US units
Blowing force 13.2 N 2.9 lbs
Air consumption 91 Nm³/h 53.6 scfm
Sound level 90 dB(A)
Blowing pattern Misc.
Connection G 1" 1"-11 1/2 NPT
Connection type Female

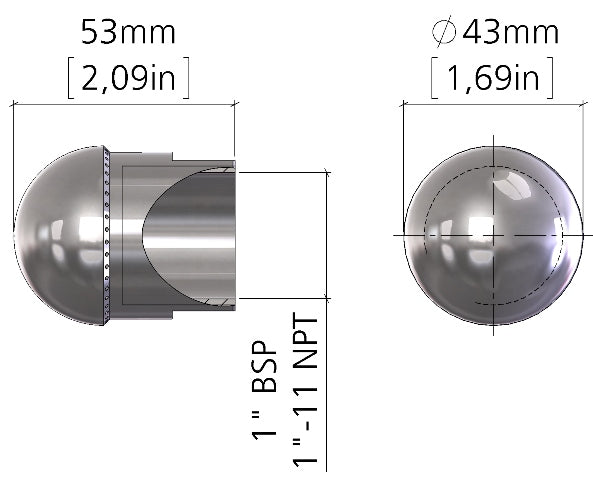

Dimensions Ø43x53 mm Ø1.69x2.09 inch
Material Stainless steel
Weight 0.220 kg 0.485 lbs
Max temp 400 °C 752 °F
Max operating pressure 1.0 MPa 143.0 psi

Benefits

Meet the EU Machine directives Yes

Blowing properties at different pressures

SI units (kPa) 200 400 600 800 1000
Blowing force (N) 5.3 10.3 16.1 21.1 26.4
Air consumption (Nm³/h) 37.4 72.0 107.5 143.7 176.0
Sound level (dB(A)) 81.1 87.8 90.7 92.9 94.1
US units (psi) 40 60 80 100 120
Blowing force (oz) 25.1 38.0 50.1 64.0 70.7
Air consumption (scfm) 29.1 43.7 58.1 72.8 87.5
Sound level (dB(A)) 82.0 85.8 88.5 90.8 92.3
