Silvent 910 Nozzle

Silvent 910 Nozzle

  • $204.00 USD


Please allow up to 1 week to ship



SIL.910: Silvent 910 is a back-blow nozzle used for blowing clean inside pipes or channels. Cleaning out pipe during and after tooling has always been a problem. Blowing clean using conventional methods is impossible as chips are blown further into the pipe rather than out. SILVENT 910 can handle blow-out of pipe with diameters from 25 mm (1") up to 100 mm (4"). The nozzles are based upon and manufactured in accordance with Silvent's patents, which means that both noise level and air consumption are kept to a minimum. Fully complies with EU Machine Directive noise limitations and OSHA safety regulations.

Specifications

SI units

SPECIAL ORDER

PLEASE CALL

US units
Blowing force 5.5 N 1.2 lbs
Air consumption 38 Nm³/h 22.4 scfm
Sound level 86 dB(A)
Blowing pattern Misc.
Connection G 1/4" 1/4"-18 NPT
Connection type Female

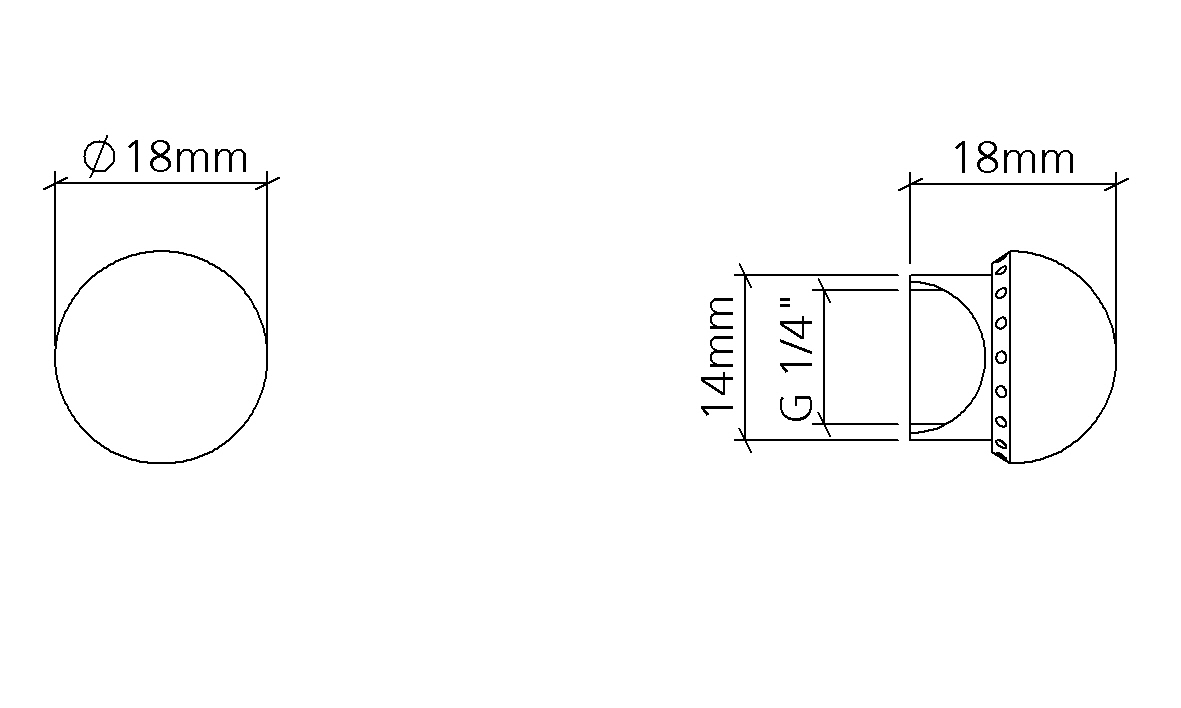

Dimensions Ø18x17.5 mm Ø0.71x0.69 inch
Material Stainless steel
Weight 0.014 kg 0.031 lbs
Max temp 400 °C 752 °F
Max operating pressure 1.0 MPa 143.0 psi

Benefits

Replace open pipe 7 mm 9/32 inch
Noise reduction [dB(A)] 19 dB(A) 73 %
Air/cost savings [Nm³/h] 54 Nm³/h 59 %
Meet the EU Machine directives Yes

Blowing properties at different pressures

SI units (kPa) 200 400 600 800 1000
Blowing force (N) 2.2 4.3 6.7 8.8 11.0
Air consumption (Nm³/h) 15.6 30.0 44.8 59.9 73.3
Sound level (dB(A)) 76.5 83.4 87.0 90.1 92.6
US units (psi) 40 60 80 100 120
Blowing force (oz) 10.7 16.1 21.4 26.7 32.3
Air consumption (scfm) 12.3 18.5 24.4 30.4 36.7
Sound level (dB(A)) 79.4 83.8 86.6 88.8 90.4
