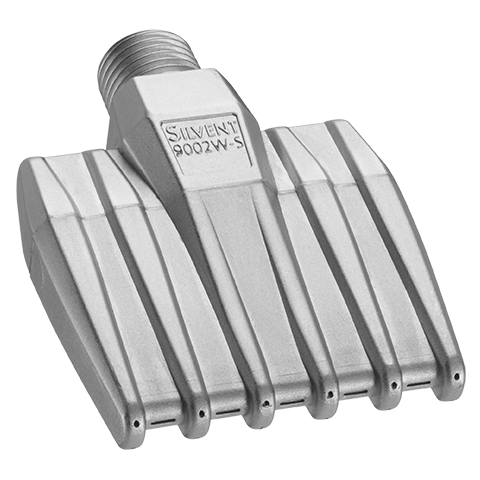

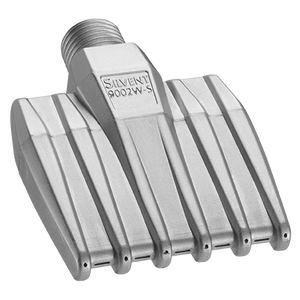

Silvent 9002W-S Flat Stainless Nozzle

Silvent 9002W-S Flat Stainless Nozzle

$392.00 USD

    Please allow up to 1 week to ship

    SIL.9002W-S: an energy-efficient flat stainless steel nozzle that generates a strong, efficient blowing force at an exceptionally low noise level. Compressed air is optimally used in this flat nozzle, which through its unique design introduces a completely new blowing technology feature. The aerodynamic nozzle design achieves the effect by maximizing entrainment of air. Each orifice is also uniquely designed to optimize the entrainment area. These small orifices combined with the aerodynamic slots of the nozzle provide high efficiency.



    Technical data (US)

    Replace open pipe Ø (inch) 1/4
    Blowing force 1.2 lbs
    Air consumption (scfm) 16.5
    Sound level (dB(A)) 78
    Nozzle technology Slot
    Material (nozzle) 1.4404 (316L)

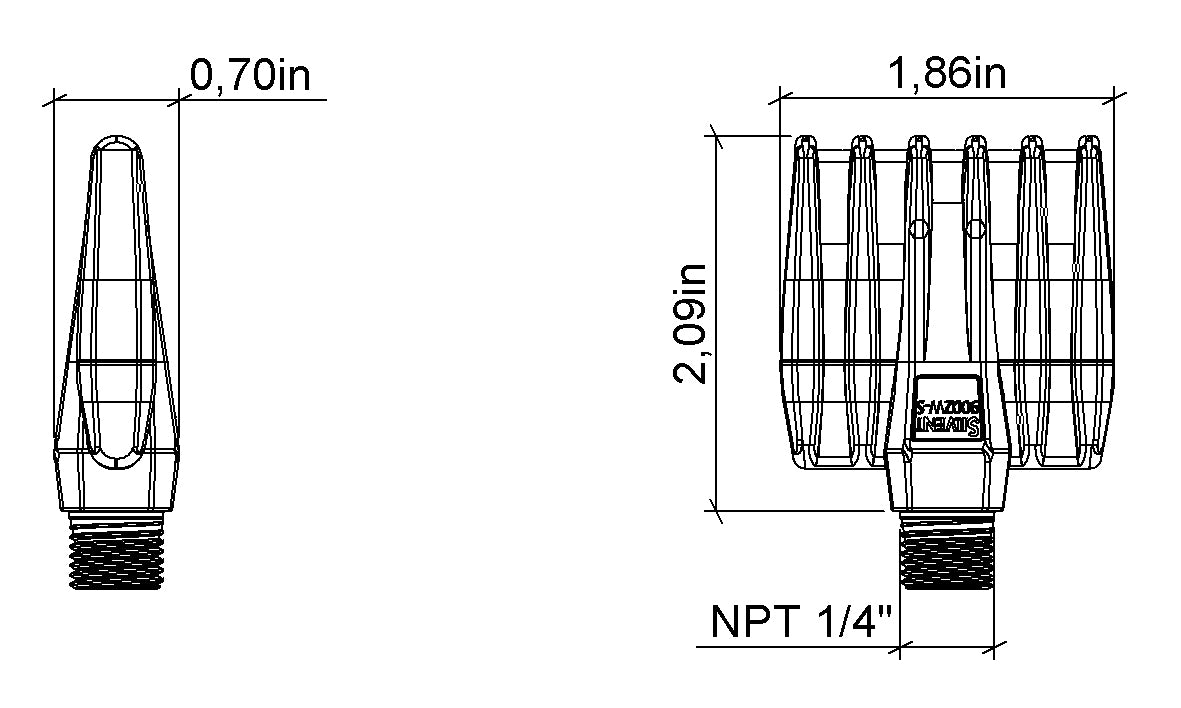

    Connection NPT 1/4"
    Connection type Male
    Weight (lbs) 0.176
    Max temp. (°F) 752
    Max op. pressure (psi) 145

    Benefits when replacing an open pipe

    Replace open pipe Ø (inch) 1/4
    Noise reduction 24 [dB(A)] 81%
    Energy savings 23 [scfm] 58%

    Material specification: EN 1.4404

    Blowing properties at different pressures

    Pressure (psi) 40 60 80 100 120
    Blowing force (oz) 12.5 16.8 21.1 25.5 29.8
    Air consumption (scfm) 10.7 14.2 17.6 21.1 24.5
    Sound level (dB(A)) 73.3 76.0 78.3 80.5 82.6

    Blowing coverage

    Blowing dist. (inch) Blowing coverage (inch)
    2 3.15
    4 3.94
    8 5.51
    12 7.09
    16 8.66
    20 10.24
