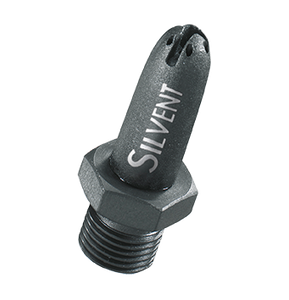

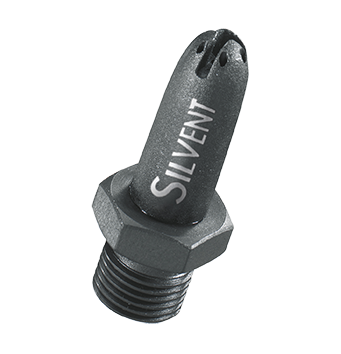

Silvent 811 PEEK Nozzle

  • $98.00 USD


Please allow up to 1 week to ship



SIL.811: "PEEK" nozzle with a central orifice. Withstands aggressive chemical environments, corrosive cutting fluids and temperatures of up to 260°C (500°F). Protects sensitive products against scratching and impact. 1/8" male connection thread. Additional technical specifications are provided in the table below. Fully complies with EU Machine Directive noise limitations and OSHA safety regulations.



Specifications

SI units

SPECIAL ORDER

PLEASE CALL

US units
Blowing force 2.7 N 9.5 oz
Air consumption 15.2 Nm³/h 8.9 scfm
Sound level 80 dB(A)
Blowing pattern Concentrated
Connection G 1/8" 1/8"-27 NPT
Connection type Male

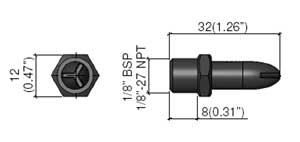

Dimensions 12x32 mm 0.47x1.26 inch
Material PEEK
Weight 0.002 kg 0.004 lbs
Max temp 260 °C 500 °F
Max operating pressure 1.0 MPa 143.0 psi

Benefits

Replace open pipe 4 mm 5/32 inch
Noise reduction [dB(A)] 15 dB(A) 65 %
Air/cost savings [Nm³/h] 15 Nm³/h 50 %
Meet the EU Machine directives Yes

Blowing properties at different pressures

SI units (kPa) 200 400 600 800 1000
Blowing force (N) 1.1 2.2 3.3 4.3 5.4
Air consumption (Nm³/h) 7.5 12.5 17.6 22.7 27.7
Sound level (dB(A)) 69.5 76.7 80.9 83.6 85.9
US units (psi) 40 60 80 100 120
Blowing force (oz) 5.5 8.2 10.8 13.5 16.2
Air consumption (scfm) 5.6 7.7 9.8 11.8 13.9
Sound level (dB(A)) 73.0 77.1 80.0 82.3 84.2

Air cone patterns and velocity distribution

SI units (mm) 50 100 200 300 400 500
Blowing pattern (ø) 24 38 80 114 156 194
Velocity (m/s) 133 106 58 40 36 33
US units (inch) 2 4 8 12 16 20
Blowing pattern (ø) 0.94 1.50 3.15 4.49 6.14 7.64
Velocity (ft/s) 436 348 190 131 118 108
