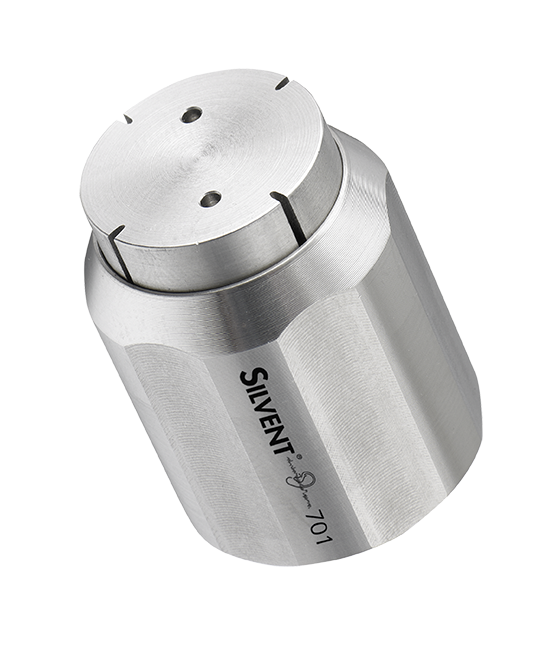

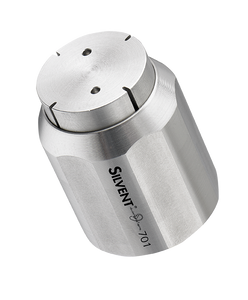

Silvent 701 Stainless Nozzle

  • $384.00 USD


Please allow up to 1 week to ship



SIL.701 : specially made entirely of stainless steel with aerodynamic slots to allow optimal utilization of compressed air while keeping the noise level to a minimum. The high ambient temperatures of a glass works or the stringent hygienic requirements of the food processing industry are examples of typical areas of application. Blowing force of 3.2 N (11.3 oz). Part of SILVENT's 700 series together with 703, 705, 710 and 720. Fully meets OSHA safety regulations and EU Machine Directive noise restrictions.



Specifications

SI units

SPECIAL ORDER

PLEASE CALL

US units
Blowing force 3.2 N 11.3 oz
Air consumption 21 Nm³/h 12.4 scfm
Sound level 82 dB(A)
Blowing pattern Wide
Connection G 1/2" 1/2"-14 NPT
Connection type Female

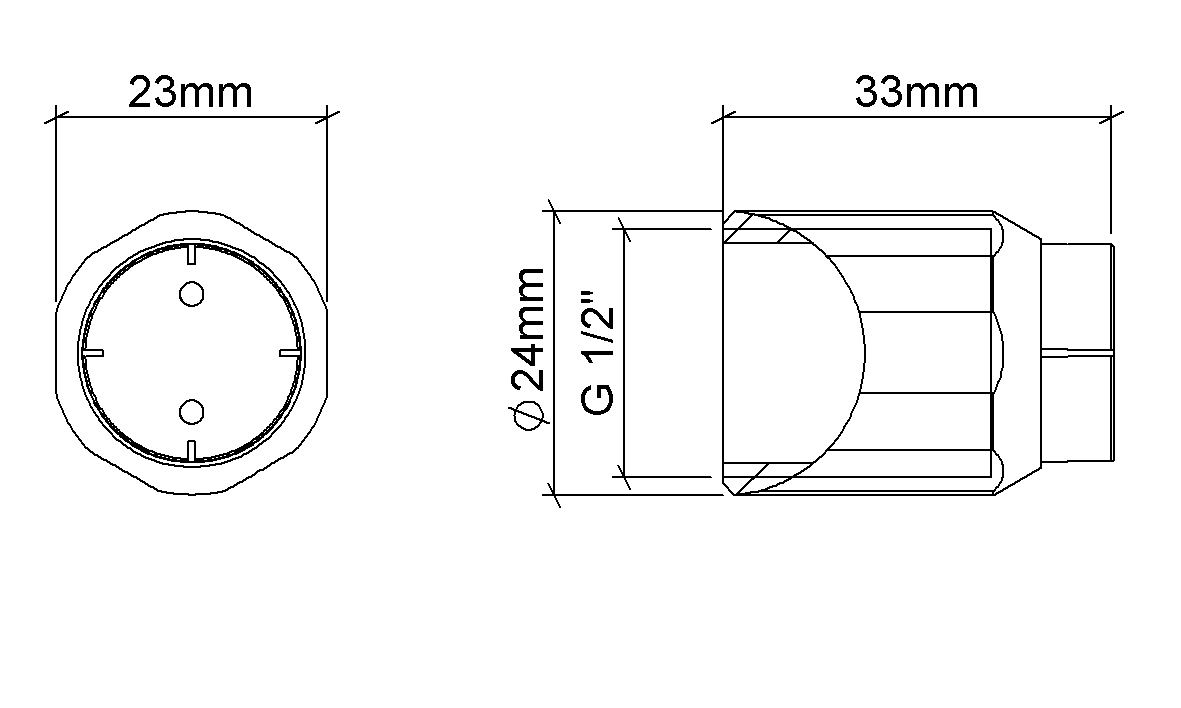

Dimensions 23x33 mm 0.91x1.30 inch
Material Stainless steel
Weight 0.054 kg 0.119 lbs
Max temp 400 °C 752 °F
Max operating pressure 1.0 MPa 143.0 psi

Benefits

Replace open pipe 4 mm 5/32 inch
Noise reduction [dB(A)] 13 dB(A) 60 %
Air/cost savings [Nm³/h] 9 Nm³/h 30 %
Meet the EU Machine directives Yes

Blowing properties at different pressures

SI units (kPa) 200 400 600 800 1000
Blowing force (N) 1.4 2.6 4.0 5.2 6.3
Air consumption (Nm³/h) 10.0 16.5 26.5 33.2 40.0
Sound level (dB(A)) 75.3 80.0 83.6 86.2 87.5
US units (psi) 40 60 80 100 120
Blowing force (oz) 7.6 10.6 13.8 17.0 20.2
Air consumption (scfm) 8.2 11.3 14.4 17.6 20.8
Sound level (dB(A)) 76.8 80.3 82.8 84.9 86.6

Air cone patterns and velocity distribution

SI units (mm) 50 100 200 300 400 500
Blowing pattern (ø) 95 140 190 235 280 330
Velocity (m/s) 108 86 51 39 34 31
US units (inch) 2 4 8 12 16 20
Blowing pattern (ø) 3.74 5.51 7.48 9.25 11.02 12.99
Velocity (ft/s) 354 282 167 128 112 102
