Silvent 512 Nozzle

  • $62.00 USD


Please allow up to 1 week to ship



SIL.512: slot nozzle that generates a directed air jet. Suitable for all-purpose blowing and blowing in confined spaces. Compact size makes this nozzle a popular choice for use in machines and tools where clearance is limited. Combines advantages of low noise level and low air consumption with high blowing force. Meets OSHA safety regulations stipulating that air pressure in direct contact with skin must not exceed 210 kPa (30 psi). Also meets EU Machine Directive noise restrictions.

Specifications

SI units

SPECIAL ORDER

PLEASE CALL

US units
Blowing force 3.2 N 11.3 oz
Air consumption 19 Nm³/h 11.2 scfm
Sound level 79 dB(A)
Blowing pattern Concentrated
Connection G 1/8" 1/8"-27 NPT
Connection type Male

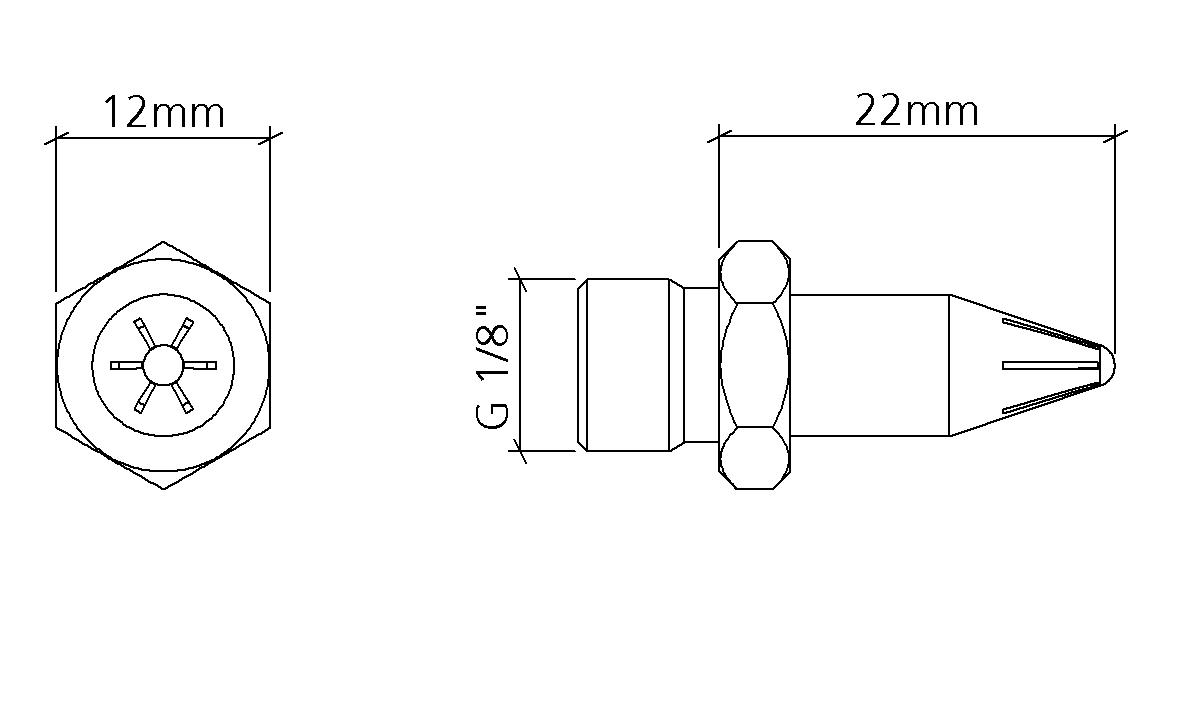

Dimensions 12x30.3 mm 0.47x1.19 inch
Material Zinc
Weight 0.005 kg 0.011 lbs
Max temp 70 °C 158 °F
Max operating pressure 1.0 MPa 143.0 psi

Benefits

Replace open pipe 4 mm 5/32 inch
Noise reduction [dB(A)] 16 dB(A) 67 %
Air/cost savings [Nm³/h] 11 Nm³/h 37 %
Meet the EU Machine directives Yes

Blowing properties at different pressures

SI units (kPa) 200 400 600 800 1000
Blowing force (N) 1.4 2.6 4.0 5.1 6.3
Air consumption (Nm³/h) 9.3 15.3 22.8 29.8 36.8
Sound level (dB(A)) 71.0 76.8 81.0 84.9 87.5
US units (psi) 40 60 80 100 120
Blowing force (oz) 6.5 9.5 12.5 15.5 18.6
Air consumption (scfm) 7.1 9.8 12.6 15.4 18.0
Sound level (dB(A)) 73.3 77.0 80.1 82.8 85.2

Air cone patterns and velocity distribution

SI units (mm) 50 100 200 300 400 500
Blowing pattern (ø) 24 38 80 114 156 194
Velocity (m/s) 121 101 56 39 35 32
US units (inch) 2 4 8 12 16 20
Blowing pattern (ø) 0.94 1.50 3.15 4.49 6.14 7.64
Velocity (ft/s) 397 331 184 128 115 105
