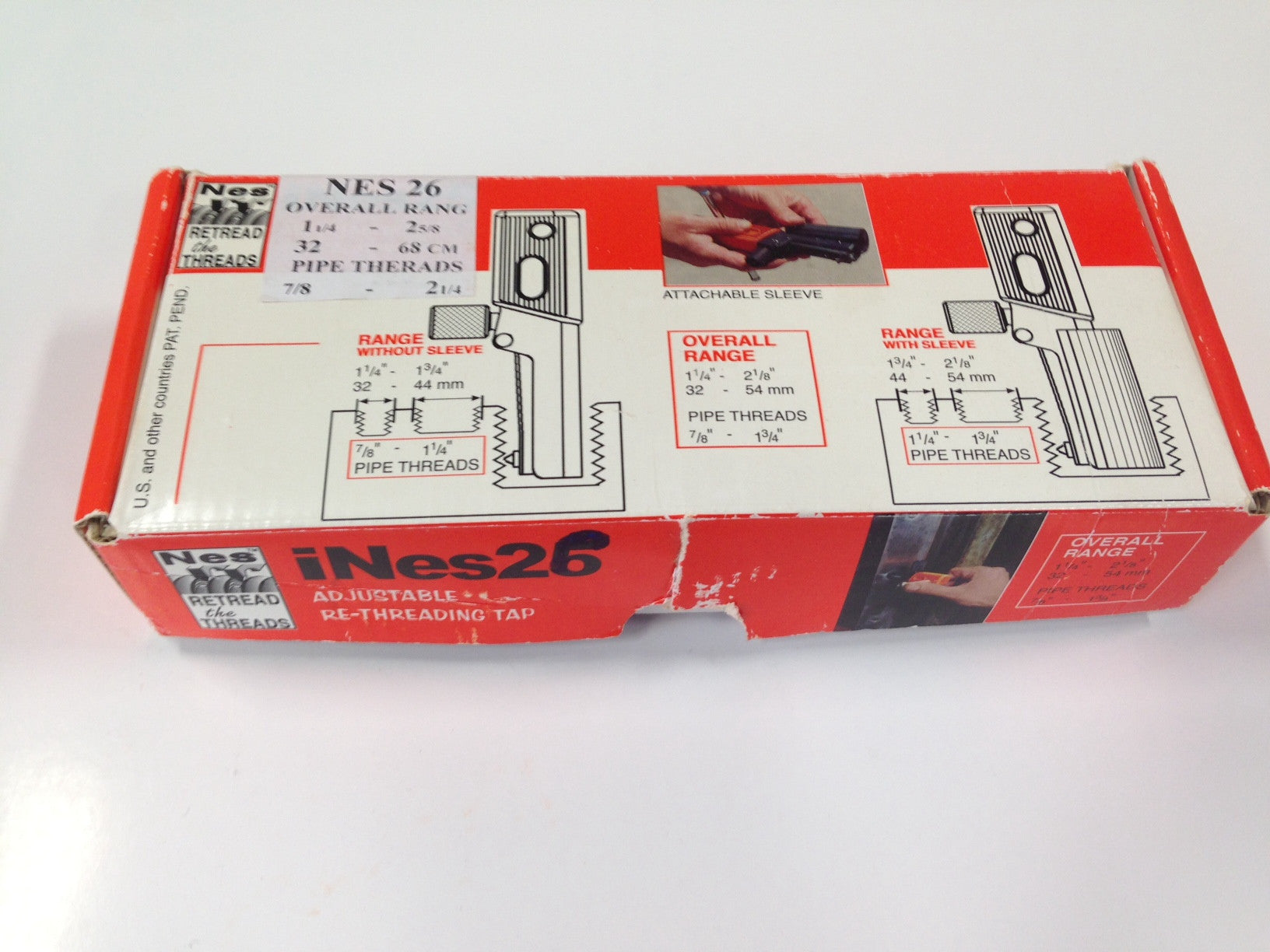

NES26 Internal Rethreading Tool: 1.1/4"-2.5/8" (32-68mm)

NES26 Internal Rethreading Tool: 1.1/4"-2.5/8" (32-68mm)

$658.98 USD

Internal Thread Repair



internal

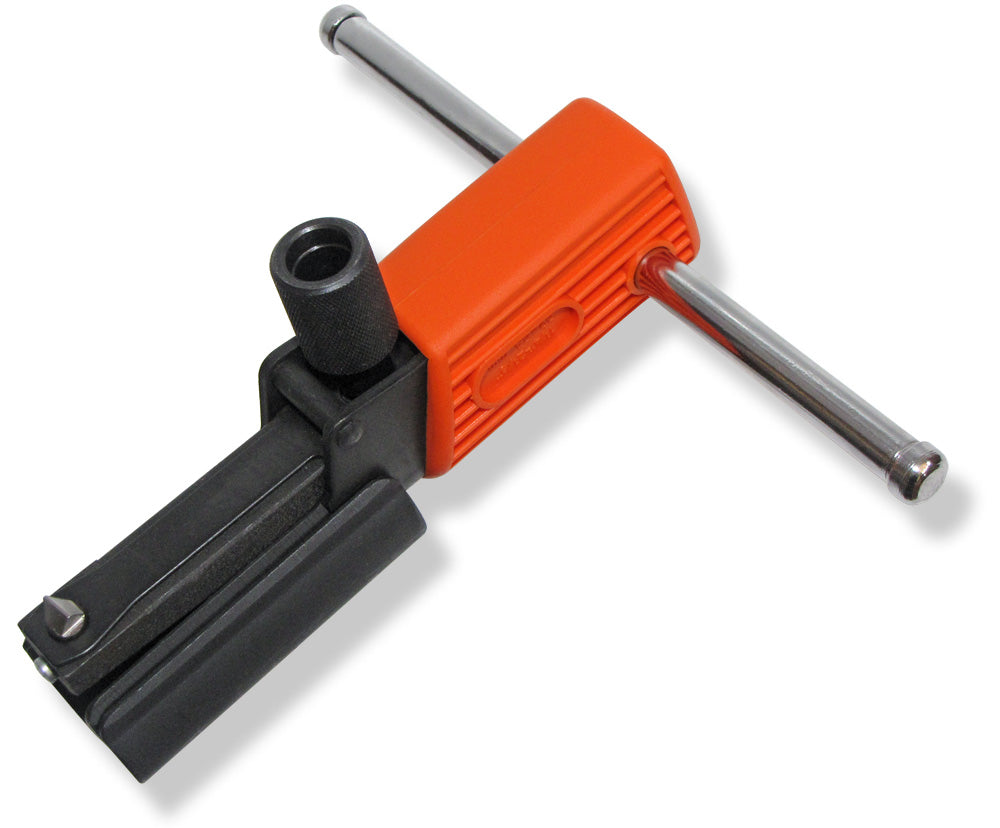

Turn knurled knob K to fully retract the blade B into housing H insert Nes Internal tool into the threaded hole bore to be repaired Turn knurled knob K to extend blade B into a thread groove on an undamaged section and tighten by hand only. Rotate the Nes Internal tool by the cross-rod as shown, in the desired direction.




Part Number Description Range Pipe Size Replacement Blades  Pkg. Qty
(Inches) (mm)
NES21 Small Thread Restorer 5/16-7/16 8-11 1/8-3/16 NES21B   60° ( American and metric threads)

( NES21B55 55
° for British threads)
1
NES22 Small Thread Restorer 1/2-5/8 12-16 1/4-3/8 NES22B 60° ( American and metric threads)

( NES22B55 55
° for British threads)
1
 NES23 Medium Thread Restorer 11/16-13/16 16-20 3/8-1/2 NES23B 60° ( American and metric threads)

(NES23B55 55
° for British threads)
 1
 NES24 Large Thread Restorer 7/8-1 1/4 22-32 1/2-7/8 NES24B 60° ( American and metric threads)

(NES23B55 55
° for British threads)
 1
 NES25* X-Large Thread Restorer 1 1/4-2 1/8 32-54 7/8-1 3/4 NES25B 60° ( American and metric threads)

( NES25B5555
° for British threads)
 1
 *Attachable sleeve included for use with diameters greater than 1 3/4" (44mm)





Visit our site for more info:

http://www.newmantools.com/nes/nesint.htm
