Metric Medium, Fine & Extra Fine Screw Thread Repair Kits

Metric Medium, Fine & Extra Fine Screw Thread Repair Kits

  • $142.59 USD


Please select size from the pull down menu.



METRIC MEDIUM and FINE
Size Part # Inserts
Per Kit
Drill Size
MM INCH
8-1 STKM8x1.0 10 8.30 21/64
9-1 STKM9x1.0 10 9.30
10-1.25 STKM10x1.25 10 10.30 13/32
11-1.25 STKM11x1.25 5 11.30 7/16
12-1.5 STKM12x1.5 5 12.30 31/64

13-1.5 STKM13x1.5 5 13.20 33/64
14-1.5 STKM14x1.5 5 14.30 9/16
15-1.5 STKM15x1.5 5 15.30 39/64
16-1.5 STKM16x1.5 5 16.50 21/32
18-2 STKM18x2.0 5 18.50 23/32

20-2 STKM20x2.0 5 20.50 13/16
22-2 STKM22x2.0 5 22.50 57/64
24-2 STKM24x2.0 5 24.50 31/32
27-2 STKM27x2.0 5 27.50 1-5/64
30-2 STKM30x2.0 5 30.50 1-3/16

36-3 STKM36x3.0 4 36.50 1-7/16
39-3 STKM39x3.0 5 39.50 1-9/16
42-3 STKM42x3.0 4 42.50 1-11/16



METRIC EXTRA FINE
Size Part # Insert
Per Kit
Drill Size
MM INCH
10-1 STKM10x1.0 10 10.30 13/32
11-1 STKM11x1.0 5 11.30 7/16
12-1.25 STKM12x1.25 5 12.30 31/64

13-1.25 STKM13x1.25 5 13.20 33/64
14-1.25 STKM14x1.25 5 14.30 9/16
18-1.5* STKM18x1.5 5 18.50 23/32
20-1.5 STKM20x1.5 5 20.50 13/16
22-1.5 STKM22x1.5 5 22.50 57/64

24-1.5 STKM24x1.5 5 24.50
26-1.5 STKM26x1.5 5 26.50 1-3/32
27-1.5 STKM27x1.5 5 27.50 1-5/64
30-1.5 STKM30x1.5 5 30.50 1-3/16
36-1.5 STKM36x1.5 4 36.50 1-7/16

39-2 STKM39x2 5 39.50 1-9/16
42-2 STKM42x2 4 42.50 1-11/16

* M18 extra fine is a different spec and thread form to M 18 Spark Plug

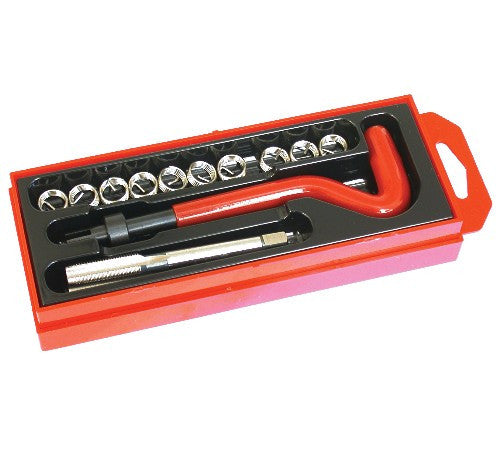

note: The Sets include a High Speed Steel Tap, Inserts and Installation/Tang Break Off Tool.
A drill is not included but the recommended size is listed.

The insert length is 1.5 x diameter.



For more information please visit:

http://www.newmantools.com/recmet.htm
