Metric Coarse Screw Thread Repair Kits
Please select size from the pull down menu.
| Size | Part # | Inserts Per Kit |
Drill Size | |
| MM | INCH | |||
| 2.0x0.4 | STKM2.0x.4 | 10 | 2.10 | |
| 2.2-.45 | STKM2.2x.45 | 10 | 2.30 | #42 |
| 2.5-.45 | STKM2.5x.45 | 10 | 2.60 | #37 |
| 3-.5 | STKM3x0.5 | 10 | 3.20 | 1/8 |
| 3.5-.6 | STKM3.5x0.6 | 10 | 3.70 | #27 |
| 4-.7 | STKM4x0.7 | 10 | 4.20 | 11/64 |
| 5-.8 | STKM5x0.8 | 10 | 5.20 | 13/64 |
| 6-1 | STKM6x1.0 | 10 | 6.30 | 1/4 |
| 7-1 | STKM7x1.0 | 10 | 7.30 | 9/32 |
| 8-1.25 | STKM8x1.25 | 10 | 8.30 | 21/64 |
| 9-1.25 | STKM9x1.25 | 10 | 9.40 | 3/8 |
| 10-1.5 | STKM10x1.5 | 10 | 10.40 | 13/32 |
| 11-1.5 | STKM11x1.5 | 5 | 11.50 | 29/64 |
| 12-1.75 | STKM12x1.75 | 5 | 12.50 | 31/64 |
| 13-1.75 | STKM13x1.75 | 5 | 13.50 | |
| 14-2 | STKM14x2 | 5 | 14.50 | 37/64 |
| 15-2 | STKM15x2 | 5 | 15.50 | |
| 16-2 | STKM16x2 | 5 | 16.50 | 21/32 |
| 18-2.5 | STKM18x2.5 | 5 | 18.80 | 47/64 |
| 20-2.5 | STKM20x2.5 | 5 | 20.80 | 13/16 |
| 22-2.5 | STKM22x2.5 | 5 | 22.80 | 57/64 |
| 24-3 | STKM24x3 | 5 | 24.80 | 31/32 |
| 27-3 | STKM27x3 | 5 | 28.00 | 1-3/32 |
| 30-3.5 | STKM30x3.5 | 5 | 30.50 | 1-1/4 |
| 30x3 | STKM30x3 | 5 | 31.00 | 1-1/4 |
| 36x4 | STKM36x4 | 4 | 37.00 | 1-7/16 |
| 39-4 | STKM39x4 | 5 | 40.00 | 1-9/16 |
| 42-4.5 | STKM42x4.5 | 5 | 43.00 | 1-11/16 |
| 42-4 | STKM42x4 | 4 | 43.00 | 1-11/16 |

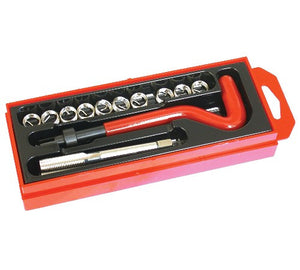

note: The Sets include a High Speed Steel Tap, Inserts and Installation/Tang Break Off Tool.
A drill is not included but the recommended size is listed.
The insert length is 1.5 x diameter.
