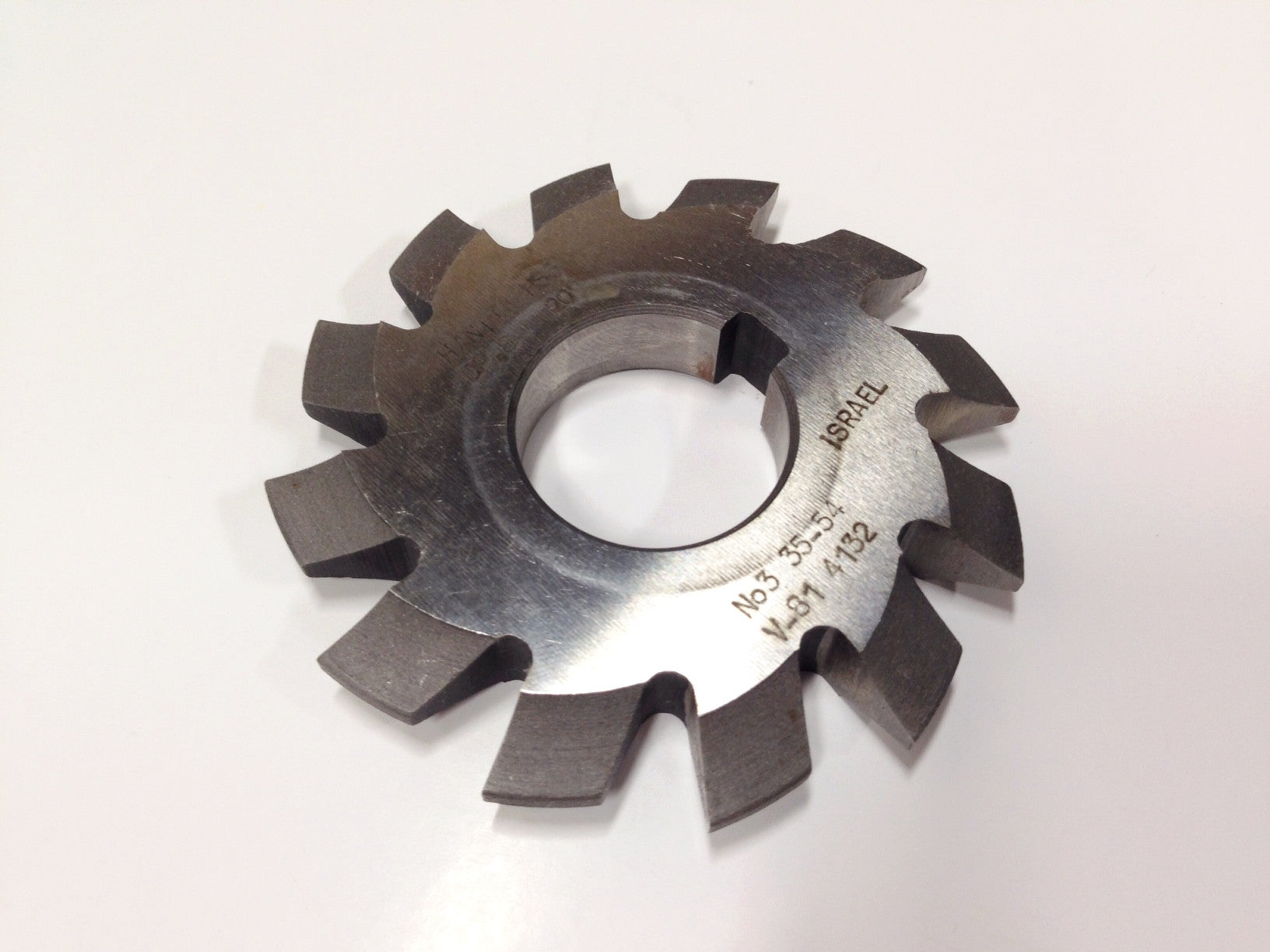

M7, 20°
Please select a cutter number (1-8) from the pull down menu.
Gear cutters are sold individually, not as a set
Module Pitch, 20° pressure angle
Module | Diameter of cutter | Diameter of bore |
0.50 | 40 | 16 |
0.75 | 40 | 16 |
1.0 | 50 | 16 |
1.25 | 50 | 16 |
1.50 | 60 | 22 |
1.75 | 60 | 22 |
2.0 | 60 | 22 |
2.25 | 60 | 22 |
2.50 | 65 | 22 |
2.75 | 70 | 27 |
3.0 | 70 | 27 |
3.25 | 75 | 27 |
3.50 | 75 | 27 |
3.75 | 80 | 27 |
4.0 | 80 | 27 |
4.25 | 86 | 27 |
4.50 | 86 | 27 |
4.75 | 90 | 27 |
5.0 | 90 | 32 |
5.50 | 95 | 32 |
6.0 | 100 | 32 |
6.50 | 105 | 32 |
7.0 | 105 | 32 |
8.0 | 110 | 32 |
Range of Cutters for metric module gear cutters
Cutter Number | Cuts Gear tooth range |
1 | 12-13 |
2 | 14-16 |
3 | 17-20 |
4 | 21-25 |
5 | 26-34 |
6 | 35-54 |
7 | 55-134 |
8 | 135- |
