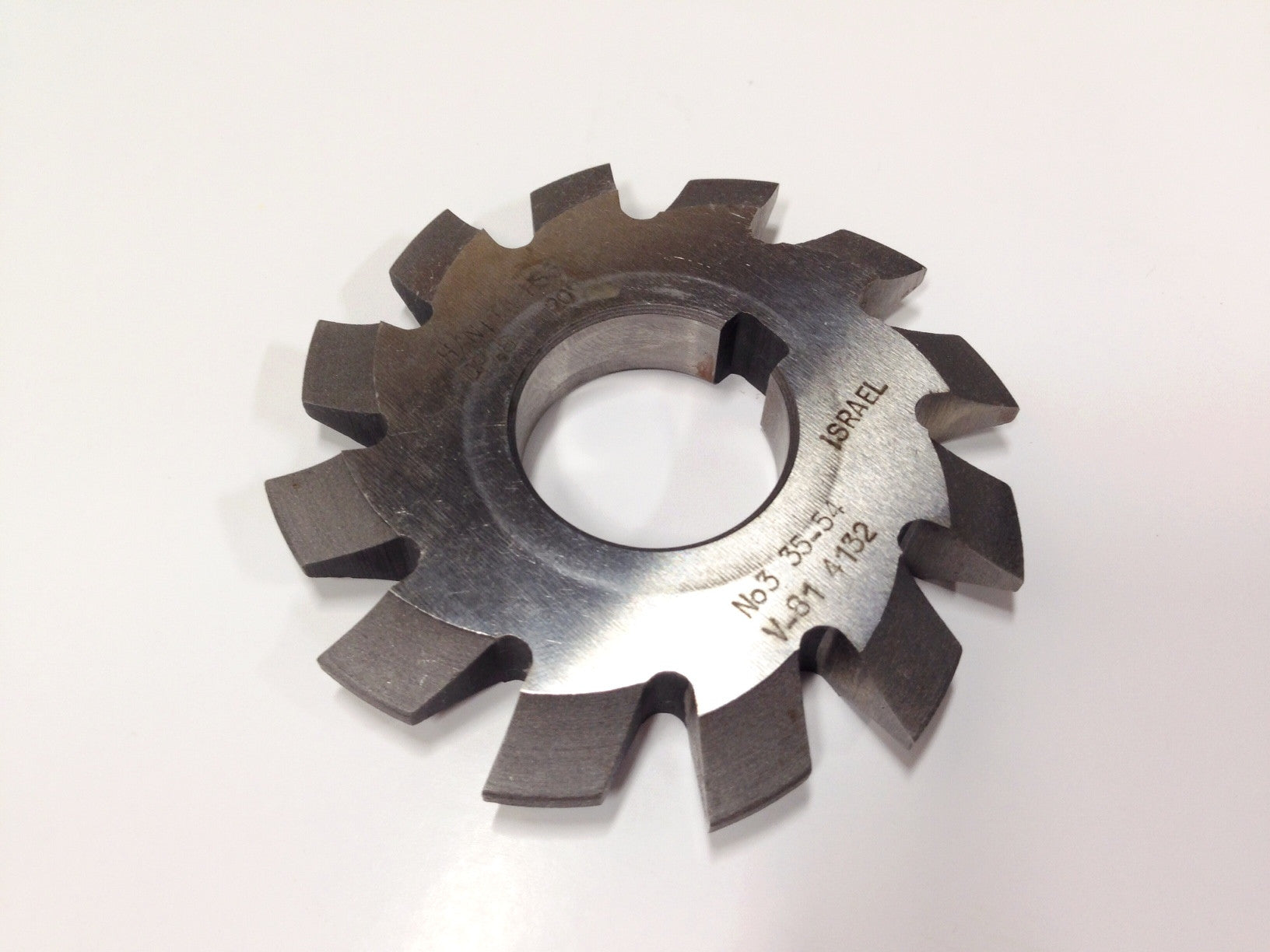

M1.75, 20°

  • $301.40 USD


Please select a cutter number (1-8) from the pull down menu.

Gear cutters are sold individually, not as a set





Module Pitch, 20° pressure angle



 Module Diameter of cutter Diameter of bore
 0.50  40  16
0.75  40  16
1.0 50  16
1.25 50 16
1.50 60 22
1.75 60 22
2.0 60 22
2.25 60 22
2.50 65 22
2.75 70 27
3.0 70 27
3.25 75 27
3.50 75 27
3.75 80 27
4.0 80 27
4.25 86 27
4.50 86 27
4.75 90 27
5.0 90 32
5.50 95 32
 6.0 100 32
6.50 105 32
7.0 105 32
8.0 110 32




Range of Cutters for metric module gear cutters



 Cutter Number Cuts Gear tooth range
1 12-13
2 14-16
3 17-20
4 21-25
5 26-34
6 35-54
7 55-134
8 135-
