Left Hand Metric Screw Thread Repair Kits

Left Hand Metric Screw Thread Repair Kits

$346.50 USD

Please select size from the pull down menu.

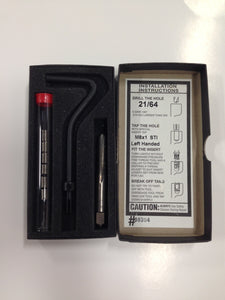

Kit comes with HSS STI tap, installation tool and inserts

The insert length is 1.5 x diameter.




METRIC Left Hand
Size Part # Inserts
Per Kit
Drill Size
MM INCH
6-1 STKM6x1LH 6 6.30 1/4
8-1 STKM8x1LH 6 8.30 21/64
8-1.25 STKM8x1.25LH 6 8.30 21/64
10-1.25 STKM10x1.25LH 6 10.30 13/32
10-1.5 STKM10x1.5LH 6 10.40 13/32
12-1.25 STKM12x1.25LH 6 12.30 31/64
12-1.75 STKM12x1.75LH 6 12.50 31/64

14-1.5 STKM14x1.5LH 4 14.30 9/16
14-2 STKM14x2LH 6 14.50 21/32
16-1.5 STKM16x1.5LH 4 16.50 21/32
16-2 STKM16x2LH 4 16.50 47/64
18-1.5* STKM18x1.5LH 4 18.50 23/32
18-2.5 STKM18x2.5LH 4 18.80 47/64

20-1.5 STKM20x1.5LH 2 20.50 13/16
20-2.5 STKM20x2.5LH 2 20.80 13/16
22-1.5 STKM22x1.5LH 2 22.50 57/64
24-2 STKM24x2.LH 2 24.50 31/32
24-3 STKM24x3LH 2 24.80 31/32
note: The Sets include a High Speed Steel Tap, Inserts and Installation/Tang Break Off Tool.
A drill is not included but the recommended size is listed.

* M18 extra fine is a different spec and thread form to M 18 Spark Plug

For more information please visit:

http://www.newmantools.com/sti/stilh.htm
