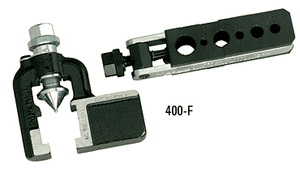

IMP.400-F, 37° ROL-AIR® FLARING TOOL by IMPERIAL
For 3/16", 1/4", 5/16", 3/8", 1/2" and
5/8" O.D. tubing.
IMP.400-F Forms 37° flares to government specifications in steel, stainless steel (including MIL-T-6845), titanium and other metal tubing. Positive stop gauge assures correct size of flare. Special burnishing action polishes flare face. Three rollers in flaring cone roll out 37° flare above die block. Roller action cuts effort required; maintains original wall thickness - eliminates stress concentration. Extension on yoke for clamping in vise. Satin chrome and black finish. Furnished in sturdy tool case. Wt. 2.5 lbs.
