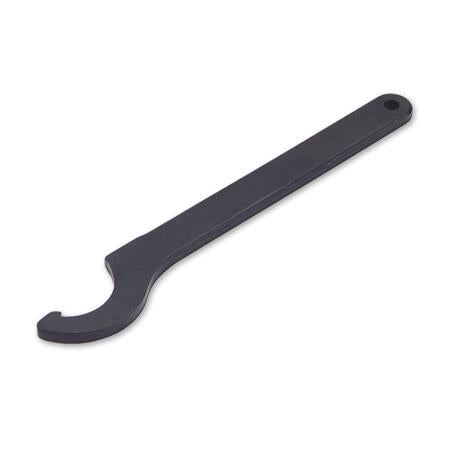

Hook Spanner Wrenches with Nose End DIN 1810A

  • $37.48 USD


Metric Size,
Hook Spanner Wrenches with Nose End

for slotted nuts DIN 1804 and for bearing locknuts DIN 981

DIN 1810 A DIN 1810 A DIN 1810 A

Specifications:

Steel, milled nose, edges ground, hardened and black finish tempered



dimensions are in millimeters
Part
Number
Size
for slotted nuts DIN1804 for bearing locknuts Din 981 Weight
Per Each
(Grams)
WR.HM12 - 14 12 - 14 110 3     25
WR.HM16 - 20 16 - 20 M6, M8 M10 (KM0)
WR.HM25 - 28 25 - 28 136 4 M10,M12 M15, (KM2), M17 ( KM3) 45
WR.HM30 - 32 30 - 32 M14, M16 M20 (KM4) 50
WR.HM34 - 36 34 - 36 170 5 M18, M20   90
WR.HM40 - 42 40 - 42 M22, M24
WR.HM45 - 50 45 - 50 206 6 M26-M30 M30 (KM6) 155
WR.HM52 - 55 52 - 55 M32, M35 M35 (KM7) 160
WR.HM58 - 62 58 - 62 240 7 M38-M42 M40 (KM8) 255
WR.HM68 - 75 68 - 75 M45-M50 M50 (KM10), M55 (KM11)
WR.HM80 - 90 80 - 90 280 8 M52-M60 M60 (KM12), M65 (KM13) 410
WR.HM95 - 100 95 - 100 M62-M70 M75 (KM15) 405
WR.HM110 - 115 110 - 115 335 10 M72-M80 M85 (KM17) 745
WR.HM120 - 130 120 - 130 M85, M90 M90 KM18), M95 (KM19), M100 (KM20) 720
*WR.HM135 - 145 *135 - 145 385 10 M95, M100

M105 (KM21), M110 (KM22), M120 (KML24)

1000
*WR.HM155 - 165 *155 - 165 M110, M115, M120

M120 (KM24), M125, (KM25), M130 (KML26), M140 (KML28)

965
*WR.HM180 - 195 *180 - 195 470 10 M125,M130,M140   1580
*WR.HM205 - 220 *205 - 220 M150,M160
*WR.HM230 - 245 *230 - 245 568 10 M170, M180   2250
*WR.HM260 - 270 *260 - 270 M190, M200
WR.HM280 - 300 280 - 300 680 15     5000
WR.HM300 - 320 300 - 320 695 5100
WR.HM320 - 345 320 - 345 695 15     5200
WR.HM350 - 375 350 - 375 735
WR.HM380 - 400 380 - 400 770 15     6700
WR.HM480 - 500 480 - 500 988 20     13000
*Thickness differs from DIN.

*Please contact us for sizes not available on the shopping cart*
