BSW Screw Thread Repair Kits

BSW Screw Thread Repair Kits

$97.57 USD

Please select size from the pull down menu.




BSW
Size Part # Inserts
Per Kit
Drill Size
MM INCH
1/8-40 STK1/8BSW 10 3.40 #29
5/32 only * 8-32 UNC available
3/16-24 STK3/16BSW 10 5.00 13/64
7/32-24 only * 12-24 UNC available
1/4-20 STK1/4BSW 10 6.70 17/64

5/16-18 STK5/16BSW 10 8.30 21/64
3/8-16 STK3/8BSW 10 9.90 25/64
7/16-14 STK7/16BSW 5 11.50 29/64
1/2-12 STK1/2BSW 5 13.00 17/32
9/16-12 STK9/16BSW 5 15.00 19/32

5/8-11 STK5/8BSW 5 16.50 21/32
3/4-10 STK3/4BSW 5 19.80 25/32
7/8-9 STK7/8BSW 5 23.00 29/32
1-8 STK1BSW 5 26.00 1-1/32
1-1/8-7 STK1.1/8BSW 5 29.50 1-5/32

1-1/4-7 STK1.1/4BSW 5 33.00 1-9/32
1-3/8-6 STK1.3/8BSW 5 36.00 1-13/32
1-1/2-6 STK1.1/2BSW 4 39.00 1-17/32

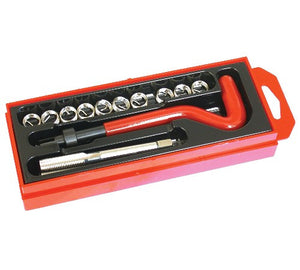

note: The Sets include a High Speed Steel Tap, Inserts and Installation/Tang Break Off Tool.
A drill is not included but the recommended size is listed.



The insert length is 1.5 x diameter.



For more information please visit:

http://www.newmantools.com/recbri.htm
