Blovac BV-22 Cleaning Gun

Blovac BV-22 Cleaning Gun

$315.02 USD

This air powered cleaning gun acts as both a vacuum cleaner and a blow gun.

Blows
On Blower Mode - the BV-22's unique venturi jet design creates a powerful vortex which amplifies input air flow by more than 10 times. This design makes it more effective than conventional air guns. Its large diameter bore and air amplification feature allow a larger surface to be covered in a shorter time. This feature can also be utilized for ventilating, cooling or drying parts.
Sucks
On Blower Mode - the BV-22 can generate up to 4 inches of mercury, three times more powerful than an ordinary electric shop vacuum cleaner.

Made from Nylon 6 the BV-22 is ideally suited to collect a wide variety of materials:

Metal Chips			Glass
Sawdust				Textile Scraps
Seed and Grain			Food Particles
Plastic Granules                Liquid Residue
Conveys
On Vacuum Mode - the BV-22's vortex action, coupled with smooth bore hose easily enables material to be transported over long distances. Addition booster units can increase this range. The BV-22 has been used to transport material in the manufacturing, agriculture and pharmaceutical industries.

BV-22 - Features

  • Unique design permits BV-22 to be vacuum cleaner or powerful blow gun.

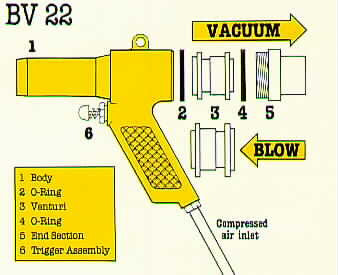

  • Switches from blow mode to vacuum mode in seconds simply by reversing the venturi.
  • Can vacuum liquid residues with safety because air-powered
  • No maintenance because the BV-22 has no moving parts.
  • Cost only a fraction of the price of an industrial strength Vacuum Cleaner.


Performance Specification Chart for BLO.BV-22 and BLO.AP-22
Pressure   PSI 28.44 42.66 71.11 85.33
Air Consumption     cfm 5.64 7.41 11.29 13.41
Total Discharge     cfm 88.27 95.33 109.46 116.52
Vacuum     in Hg 1.18 1.41 2.32 2.83
