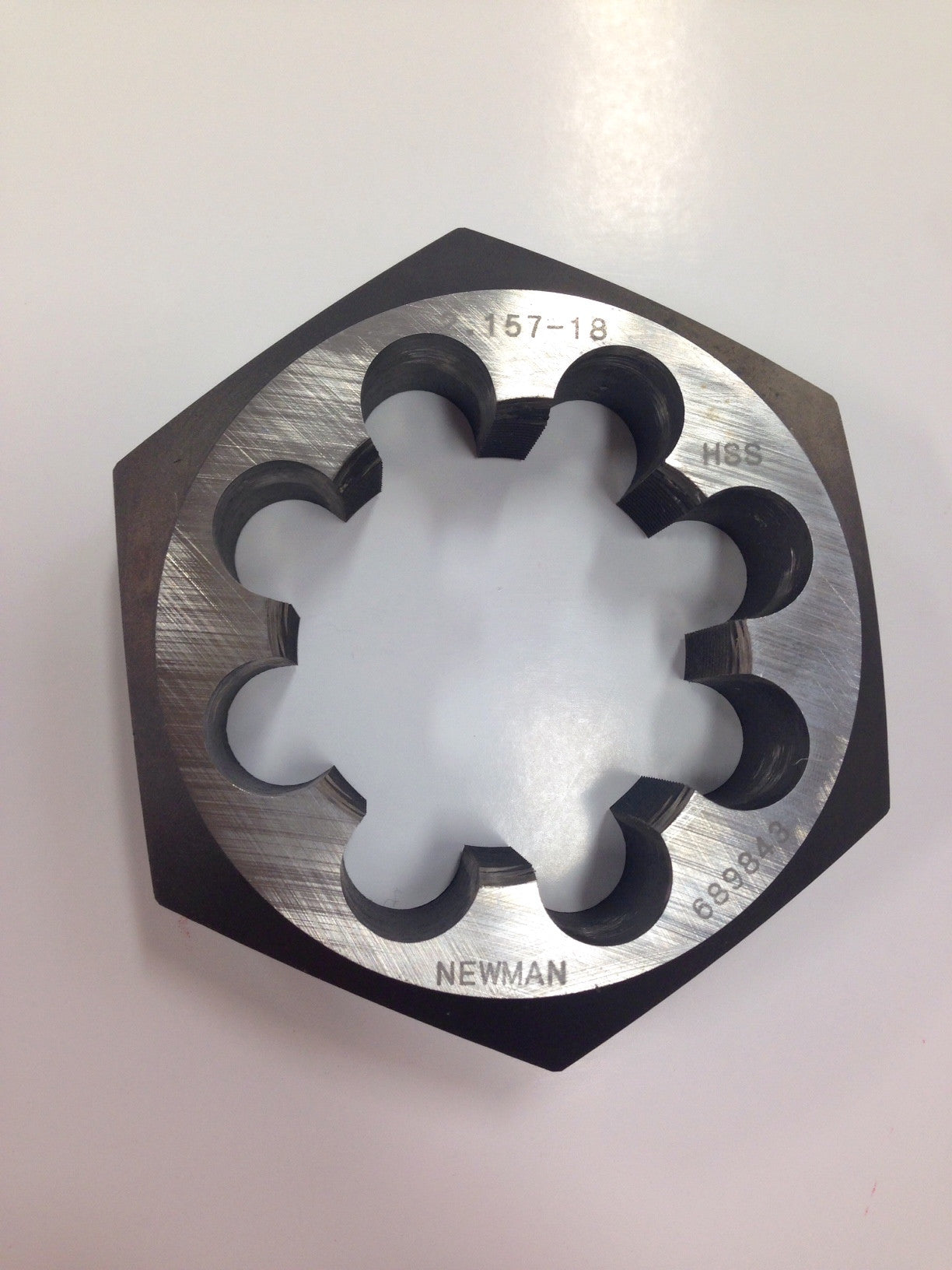

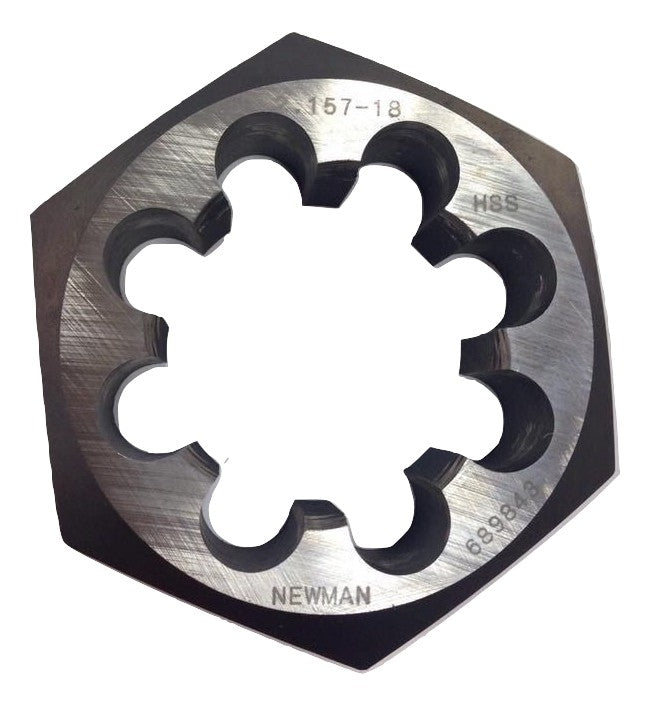

Bearing Locknut Hex Dies
Bearing locknut dies are used for creating or repairing external threads.
All locknut taps and dies are high speed steel (HSS)
please contact us for sizes not available on our cart
Locknut Size TableĀ
| LOCKNUT DESIGNATION | TPI | O.D. Max (Inches) |
|---|---|---|
| N-00 | 32 | 0.391 |
| N-01 | 32 | 0.469 |
| N-02 | 32 | 0.586 |
| N-03 | 32 | 0.664 |
| N-04 | 32 | 0.781 |
| N-05 | 32 | 0.969 |
| N-06 | 18 | 1.173 |
| N-07 | 18 | 1.376 |
| N-08 | 18 | 1.563 |
| N-09 | 18 | 1.767 |
| N-10 | 18 | 1.967 |
| N-11 | 18 | 2.157 |
| N-12 | 18 | 2.360 |
| N-13 | 18 | 2.548 |
| N-14 | 18 | 2.751 |
| *AN-15 | 12 | 2.933 |
| *AN-16 | 12 | 3.137 |
| *AN-17 | 12 | 3.340 |
| *AN-18 | 12 | 3.527 |
| *AN-19 | 12 | 3.730 |
| *AN-20 | 12 | 3.918 |
| *AN-21 | 12 | 4.122 |
| *AN-22 | 12 | 4.325 |
| *AN-24 | 12 | 4.716 |
| *AN-26 | 12 | 5.106 |
| *AN-28 | 12 | 5.497 |
| *AN-30 | 12 | 5.888 |
| *AN-32 | 8 | 6.284 |
| *AN-34 | 8 | 6.659 |
| *AN-36 | 8 | 7.066 |
| *AN-38 | 8 | 7.472 |
| *AN-40 | 8 | 7.847 |
