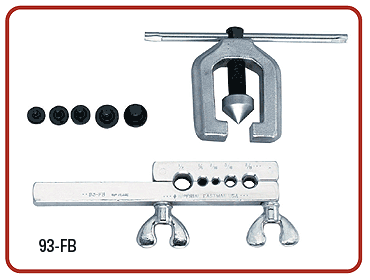

45° DOUBLE FLARING TOOL
For 3/16", 1/4", 5/16", 3/8" and 1/2" O.D. tubing.

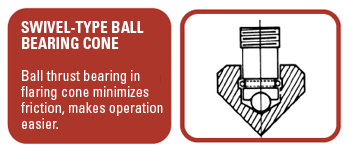

IMP.93-FB Recommended for Bundy and other annealed soft steel tubing (wall thickness to .035"). Also makes single or double flares in soft copper or aluminum tubing. Small, lightweight, easy to handle. Forged steel yoke; swivel-type hardened steel, chrome-finished flaring cone. Bar provides positive grip of tubing. Includes plastic tool case. Wt. 3.0 lbs.
Conforms to Federal Specification GGG-F-451a, Type 1, Class 2, Style A.
