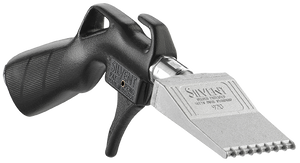

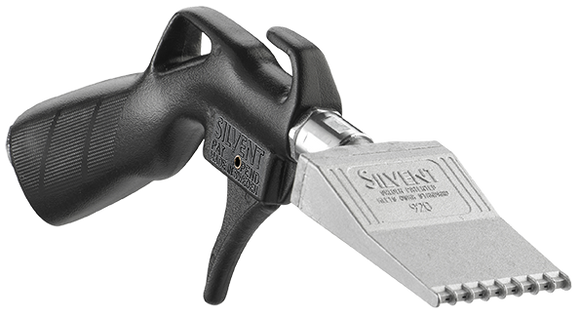

Silvent 5920 Air Gun w/ Flat Nozzle

Silvent 5920 Air Gun w/ Flat Nozzle

Please allow up to 1 week to ship
  • SIL.5920: with a flat nozzle for applications where you want the air stream to strike a wider surface for quick and efficient blow-off.
  • This low-noise nozzle is made of zinc and its outlet ports are protected against external forces by fins.
  • Fully complies with OSHA safety regulations and EU Machine Directive noise limitations.
  • Patented



Specifications
  SI units US units
Blowing force 5.5 N 19.4 oz
Air consumption 30 Nm³/h 17.7 scfm
Sound level 81 dB(A)
Air pattern Flat
Connection 1/4" BSP 1/4"-18 NPT
Connection type Female
Material (nozzle) Zinc
Weight 0.264 kg 0.582 lbs
Max temp 70 °C 158 °F
Max operating pressure 1.0 MPa 143.0 psi
Benefits
Replace open pipe 6 mm 1/4 inch
Noise reduction 21 dB(A) 77 %
Air/cost savings 37 Nm³/h 130.6 scfm
Fulfill OSHA standards Yes
Meet the EU Machine directives Yes
Blowing properties at different pressures
SI units (kPa) 200 400 600 800 1000
Blowing force (N) 2.0 4.3 7.0 9.2 11.4
Air consumption (Nm³/h) 12.0 25.0 38.0 50.1 62.0
Sound level (dB(A)) 72.0 79.1 83.3 86.6 88.4
US units (psi) 40 60 80 100 120
Blowing force (oz) 10.4 16.2 22.1 27.8 33.7
Air consumption (scfm) 10.8 15.4 20.0 24.6 29.2
Sound level (dB(A)) 75.1 79.3 82.5 85.0 87.0
