Silvent 59002W Air Gun w/ Flat Nozzle

Silvent 59002W Air Gun w/ Flat Nozzle

$238.00 USD

 Please allow up to 1 week to ship

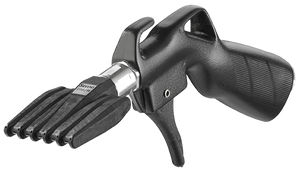

SIL.59002W: a safety air gun fitted with an energy-efficient flat nozzle that generates a strong, efficient blowing force at an exceptionally low noise level. Compressed air is optimally used in this safety air gun, which through its unique design introduces a completely new blowing technology feature. The aerodynamic nozzle design achieves the effect by maximizing entrainment of air. Each orifice is also uniquely designed to optimize the entrainment area. The air nozzle is made exclusively of Zytel, a high-performance material without which the unique and truly complex Laval orifices would not be possible. These small orifices combined with the aerodynamic slots of the nozzle provide high efficiency. This safety air gun is ideal for quickly and efficiently blowing surfaces clean without risk of scratches. Fully complies with EU Machine Directive noise limitations and OSHA safety regulations.

Specifications SI units US units
Blowing force 6.0 N 1.3 lbs
Air consumption 30.0 Nm³/h 17.7 scfm
Sound level 80 dB(A)
Blowing pattern Flat
Connection G 1/4" 1/4"-18 NPT
Connection type Female
Material Zytel
Weight 0.167 kg 0.368 lbs
Max temp 70 °C 158 °F
Max operating pressure 0.7 MPa 100.0 psi

Benefits

Replace open pipe 6 mm 1/4 inch
Noise reduction [dB(A)] 22 dB(A) 78 %
Air/cost savings [Nm³/h] 37 Nm³/h 55 scfm
Meet the EU Machine directives Yes
