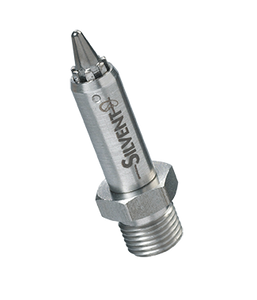

Silvent 011 Nozzle

Silvent 011 Nozzle

$154.00 USD

Please allow up to 1 week to ship



SIL.011 : a robust stainless steel nozzle. Stainless steel is necessary in applications involving e.g. high ambient temperatures, the food processing industry, or intensive mechanical nozzle wear. Noise level is halved and energy savings are considerable in comparison with "open pipe blowing". Withstands tough conditions and fulfills OSHA safety requirements limiting air pressure in direct contact with skin to 210 kPa (30 psi). Also meets EU Machine Directive noise restrictions.



Specifications

SI units US units
Blowing force 3.2 N 11.3 oz
Air consumption 19 Nm³/h 11.2 scfm
Sound level 81 dB(A)
Blowing pattern Concentrated
Connection G 1/8" 1/8"-27 NPT
Connection type Male
Dimensions 12x39.5 mm 0.47x1.56 inch
Material Stainless steel
Weight 0.010 kg 0.022 lbs
Max temp 400 °C 752 °F
Max operating pressure 1.0 MPa 143.0 psi

Benefits

Blowing force 3.2 N 11.3 oz
Air consumption 19 Nm³/h 11.2 scfm
Sound level 81 dB(A)
Blowing pattern Concentrated
Connection G 1/8" 1/8"-27 NPT
Connection type Male
Dimensions 12x39.5 mm 0.47x1.56 inch
Material Stainless steel
Weight 0.010 kg 0.022 lbs
Max temp 400 °C 752 °F
Max operating pressure 1.0 MPa 143.0 psi
Replace open pipe 4 mm 5/32 inch
Noise reduction [dB(A)] 14 dB(A) 62 %
Air/cost savings [Nm³/h] 11 Nm³/h 37 scfm
Meet the EU Machine directives Yes

Blowing properties at different pressures

SI units (kPa) 200 400 600 800 1000
Blowing force (N) 1.4 2.8 4.1 5.5 7.0
Air consumption (Nm³/h) 9.5 15.5 22.5 29.5 36.0
Sound level (dB(A)) 72.0 77.5 80.7 85.0 88.0
US units (psi) 40 60 80 100 120
Blowing force (oz) 6.8 10.1 13.3 16.7 20.1
Air consumption (scfm) 7.2 8.8 12.5 15.2 17.9
Sound level (dB(A)) 74.3 77.8 80.5 82.8 84.9

Air cone patterns and velocity distribution

SI units (mm) 50 100 200 300 400 500
Blowing pattern (ø) 24 38 80 114 156 194
Velocity (m/s) 122 102 56 39 35 32
US units (inch) 2 4 8 12 16 20
Blowing pattern (ø) 0.94 1.50 3.15 4.49 6.14 7.64
Velocity (ft/s) 400 335 184 128 115 105
