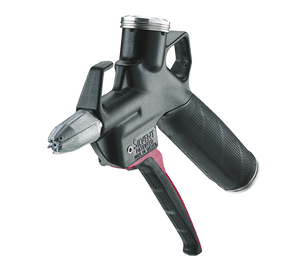

Silvent 008-L Air Gun w/ Laval Nozzle

Silvent 008-L Air Gun w/ Laval Nozzle

$139.00 USD

Please allow up to 1 week to ship
  • SIL.008-L: fitted with a new generation of zinc Laval nozzle. A mix of divergent slots and holes surround the central Laval orifice, providing quiet, powerful and laminar air flow. This safety air gun is especially suitable for sweeping large areas or general-purpose cleaning of parts and machines. The fin design of the nozzle prevents direct contact with skin.

Specifications SI units US units
Blowing force 2.9 N 10.2 oz
Blowing force, variable 1.6 N 5.6 oz
Air consumption 15.2 Nm³/h 8.9 scfm
Air consumption, variable 11 Nm³/h 6.5 scfm
Sound level 77.5 dB(A)
Sound level, variable 75 dB(A)
Blowing pattern Laval
Connection G 1/4" 1/4"-18 NPT
Connection type Female
Material Zinc
Weight 0.213 kg 0.470 lbs
Max temp 70 °C 158 °F
Max operating pressure 0.7 MPa 100.0 psi

Benefits

Replace open pipe 4 mm 5/32 inch
Noise reduction [dB(A)] 17 dB(A) 69 %
Air/cost savings [Nm³/h] 15 Nm³/h 50 scfm
Meet the EU Machine directives Yes

Blowing properties at different pressures

SI units (kPa) 200 400 600 800 1000
Blowing force (N) 1.0 2.2 3.5 5.0 6.4
Air consumption (Nm³/h) 6.1 12.5 18.7 24.4 30.5
Sound level (dB(A)) 67.0 74.7 78.7 80.6 81.5
US units (psi) 40 60 80 100 120
Blowing force (oz) 4.9 8.2 11.4 15.4 18.9
Air consumption (scfm) 4.7 7.6 10.2 12.5 15.1
Sound level (dB(A)) 69.6 75.0 78.5 79.1 79.9
