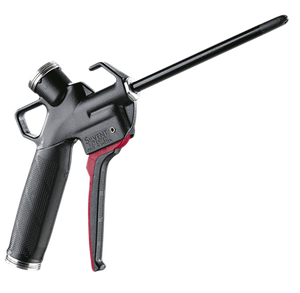

Silvent 007-P Air Gun w/ PEEK Nozzle

Silvent 007-P Air Gun w/ PEEK Nozzle

$143.00 USD

Please allow up to 1 week to ship

SIL.007-P: with a PEEK nozzle that prevents unnecessary scratching. The PEEK nozzle has been specially developed for sensitive applications where expensive tools and machines absolutely may not be damaged. The nozzle is fitted on a flexible PA 12 pipe that provides additional protection against scratches caused by mechanical impact. PEEK is a unique plastic material with properties that meet the rigorous quality and safety requirements of, for example, the aerospace industry. It is extremely impact resistant and is capable of handling aggressive chemical environments, strong cutting fluids and temperatures of up to 260°C (500°F). The nozzle is designed with a central hole that generates a concentrated air stream. At the same time, the sound level is low and air consumption is reduced. The PEEK guns are available with three different extension pipe lengths *upon request.



SI units US units
Blowing force 2.4 N 8.5 oz
Blowing force, variable 1.8 N 6.4 oz
Air consumption 14 Nm³/h 8.2 scfm
Air consumption, variable 11 Nm³/h 6.5 scfm
Sound level 79 dB(A)
Sound level, variable 79 dB(A)
Blowing pattern Concentrated
Connection G 1/4" 1/4"-18 NPT
Connection type Female
Material PEEK
Weight 0.163 kg 0.359 lbs
Max temp 70 °C 158 °F
Max operating pressure 1.0 MPa 143.0 psi

Benefits

Replace open pipe 4 mm 5/32 inch
Noise reduction [dB(A)] 16 dB(A) 67 %
Air/cost savings [Nm³/h] 16 Nm³/h 53 scfm
OSHA Yes
Meet the EU Machine directives Yes

Blowing properties at different pressures

SI units (kPa) 200 400 600 800 1000
Blowing force (N) 1.0 1.9 2.9 3.8 4.8
Air consumption (Nm³/h) 6.8 11.6 16.2 20.9 25.5
Sound level (dB(A)) 68.3 76.0 80.1 82.8 85.1
US units (psi) 40 60 80 100 120
Blowing force (oz) 4.9 7.2 9.6 11.9 14.3
Air consumption (scfm) 5.1 7.1 9.0 10.9 12.9
Sound level (dB(A)) 72.0 76.2 79.2 81.5 83.4

Extension pipes in 3 lengths

  • standard - 100 mm (4”)
  • 250 mm (10”)
  • 500 mm (20”)
