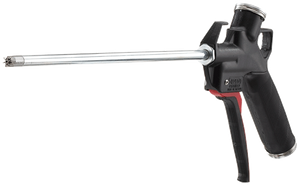

Silvent 007-L-250 Air Gun w/ Laval Nozzle

Silvent 007-L-250 Air Gun w/ Laval Nozzle

$209.00 USD

Please allow up to 1 week to ship

  • SILVENT 007-250 with extended Laval nozzle. Model No. SIL.007L250
  • A stainless steel Laval nozzle mounted onto the 007 grip handles nearly any blowing application.
  • A Laval orifice in the center of the nozzle creates a highly concentrated air stream that moves at supersonic speed.
  • Around the Laval hole there are a number of diverging slots that generate a powerful, quiet and laminar airflow.
  • The combination provides superior cleaning performance and optimal utilization of the compressed air.
  • Fins prevent direct contact between skin and the outlet holes.
  • Fully complies with OSHA safety regulations and EU Machine Directive noise limitations.
  • Patented

Specifications

SI units US units
Blowing force 3.5 N 12.4 oz
Air consumption 22 Nm³/h 12.9 scfm
Sound level 82 dB(A)
Blowing pattern Laval
Connection G 1/4" 1/4"-18 NPT
Connection type Female
Material Stainless steel
Weight 0.231 kg 0.509 lbs
Max temp 70 °C 158 °F
Max operating pressure 0.7 MPa 100.0 psi

Benefits

Replace open pipe 4 mm 5/32 inch
Noise reduction [dB(A)] 13 dB(A) 60 %
Air/cost savings [Nm³/h] 8 Nm³/h 27 scfm
Meet the EU Machine directives Yes
