Metric Coarse Tap & Die Complete Sets

  • $590.27 USD


**Please allow up to 2 weeks to ship**

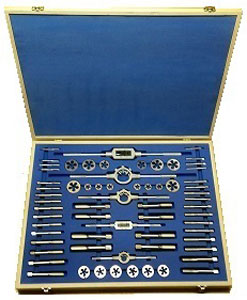

Photo is for reference, and is not for exact kit or contents



Metric Coarse Standard Thread

Each Set contains 2 Taps per size (Taper and Bottom lead), along with the corresponding round Die, appropriate Tap Wrench(es), and Die Stock(s).

They are manufactured in the United Kingdom, and are supplied in a wooden box with custom cut foam inserts.

High Speed Steel - Ground Thread

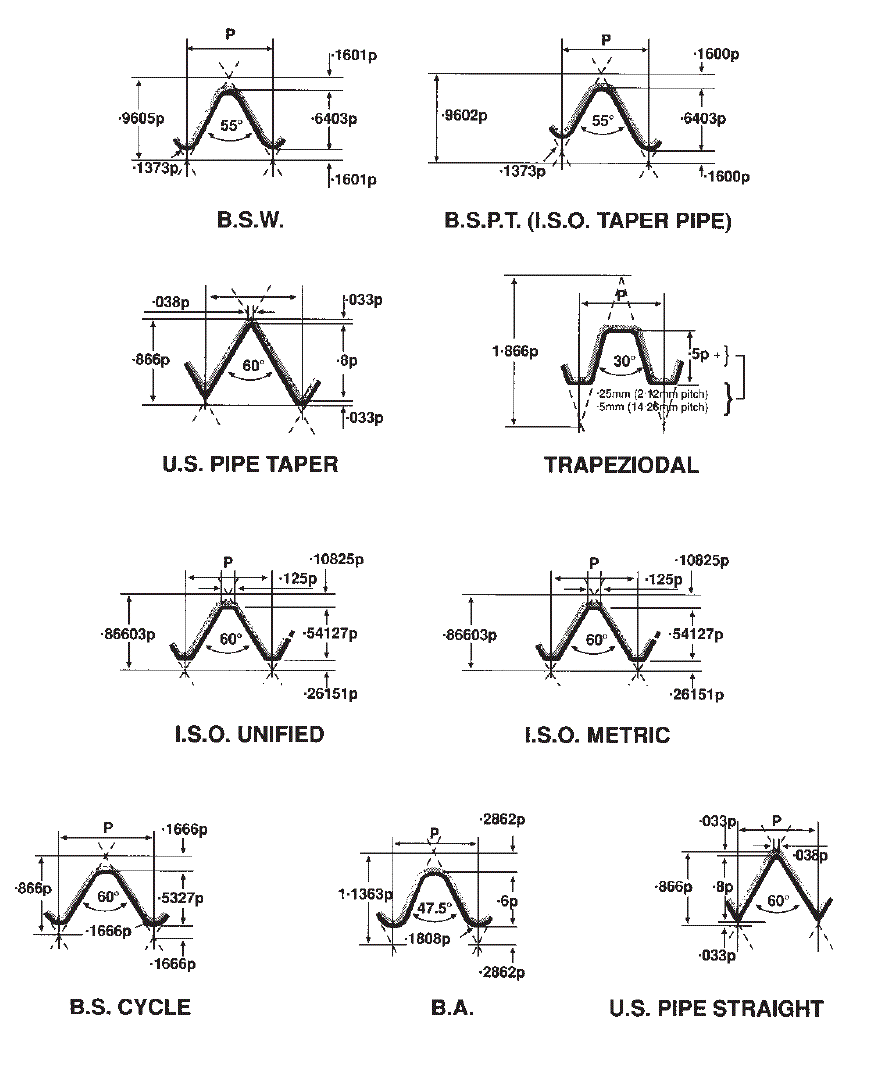

Thread Form
Size Range
Part Number Tap and Die Contents Tap
Wrenches
Die Stocks

2 - 6 mm Coarse

TAPS-ETDS40 M2, M2.5, M3, M3.5, M4, M5, M6 No 1
13/16"
6 - 12 mm Coarse TAPS-ETDS41 M6, M7, M8, M10, M12 No 2
1"
6 - 20 mm Coarse TAPS-ETDS42 M6, M7, M8, M10, M12, M14, M16, M18, M20 No 2 & 3
1" & 1-1/2"
14 - 24 mm Coarse TAPS-ETDS43 M14, M16, M18, M20, M22, M24 No 4 1-1/2" & 2"
6 - 24 mm Coarse TAPS-ETDS44 M6, M8, M10, M12, M14, M16, M18, M20, M22, M24 No 2 & 4 1", 1-1/2" & 2"






Drills are sold separately CLICK HERE

(Sizes suggested are for approx. 75% thread)

TAP DRILL SIZES - METRIC COARSE
----------------------------
TAP                 DRILL
SIZE                SIZE
----------------------------
1mm x .25            .75mm
1.1 x .25            .85
1.2 x .25            .95
1.4 x .3            1.1
1.6 x .35           1.25
1.7 x .35           1.3
1.8 x .35           1.45
2 x .4              1.6
2.2 x .45           1.75
2.5 x .45           2.05
3 x .5              2.5
3.5 x .6            2.9
4 x .7              3.3
4.5 x .75           3.7
5 x .8              4.2
6 x 1               5
7 x 1               6
8 x 1.25            6.8
9 x 1.25            7.8
10 x 1.5            8.5
11 x 1.5            9.5
12 x 1.75           10.2
14 x 2              12
16 x 2              14
18 x 2.5            15.5
20 x 2.5            17.5
22 x 2.5            19.5
24 x 3              21
27 x 3              24
30 x 3.5            26.5
33 x 3.5            29.5
36 x 4              32
39 x 4              35
----------------------------
