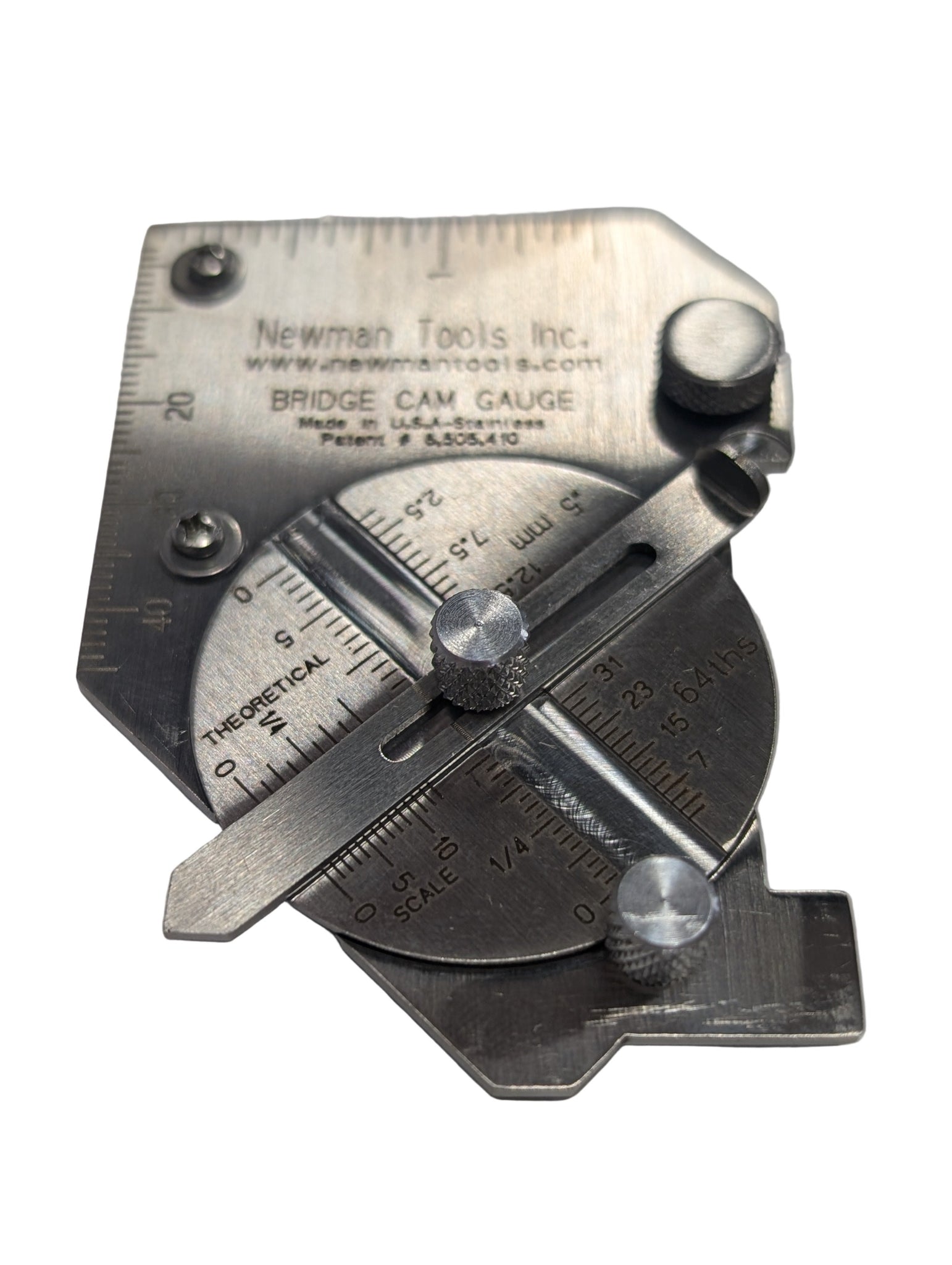

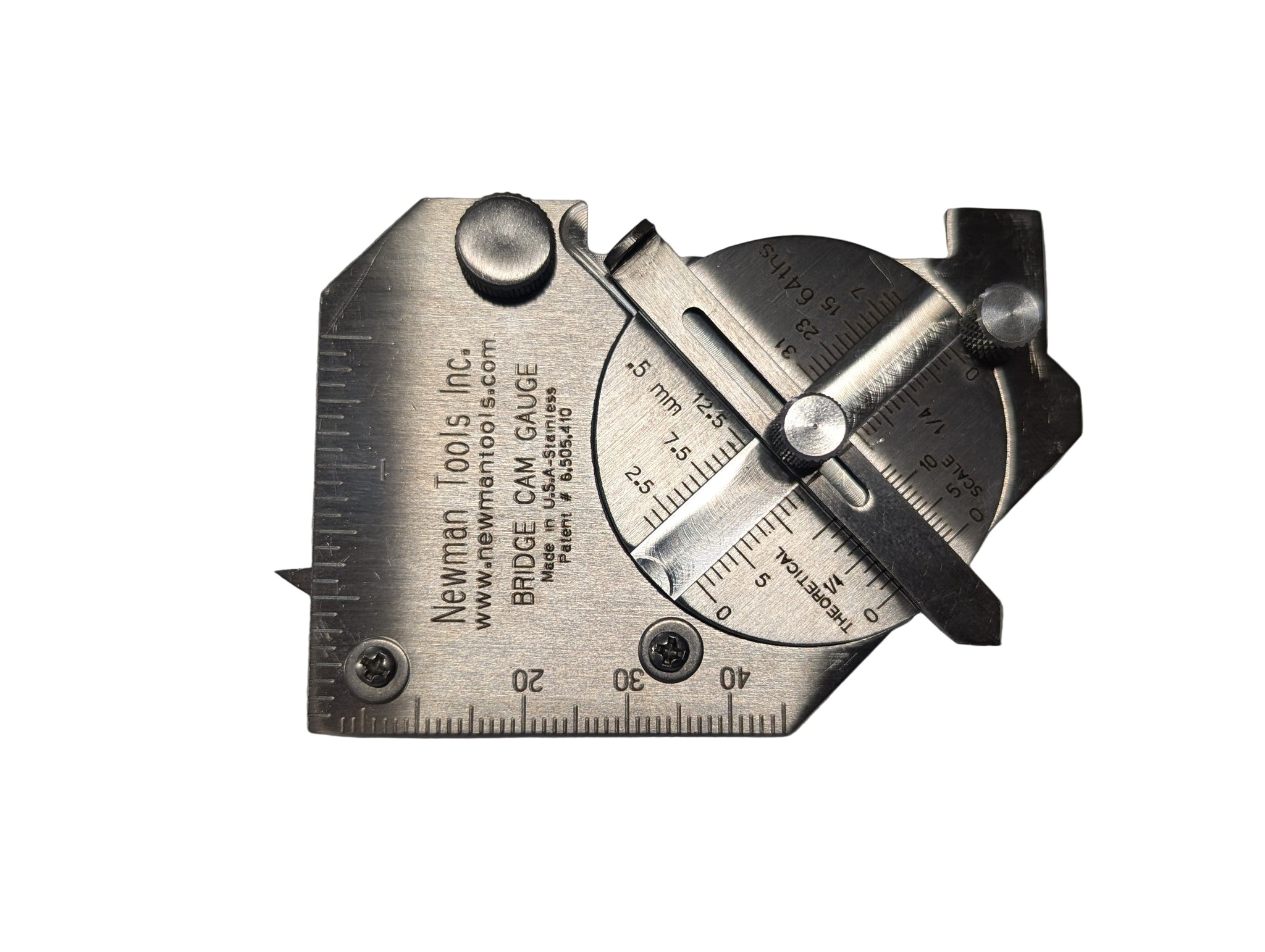

WG-4A, Pocket Bridge Cam Gauge

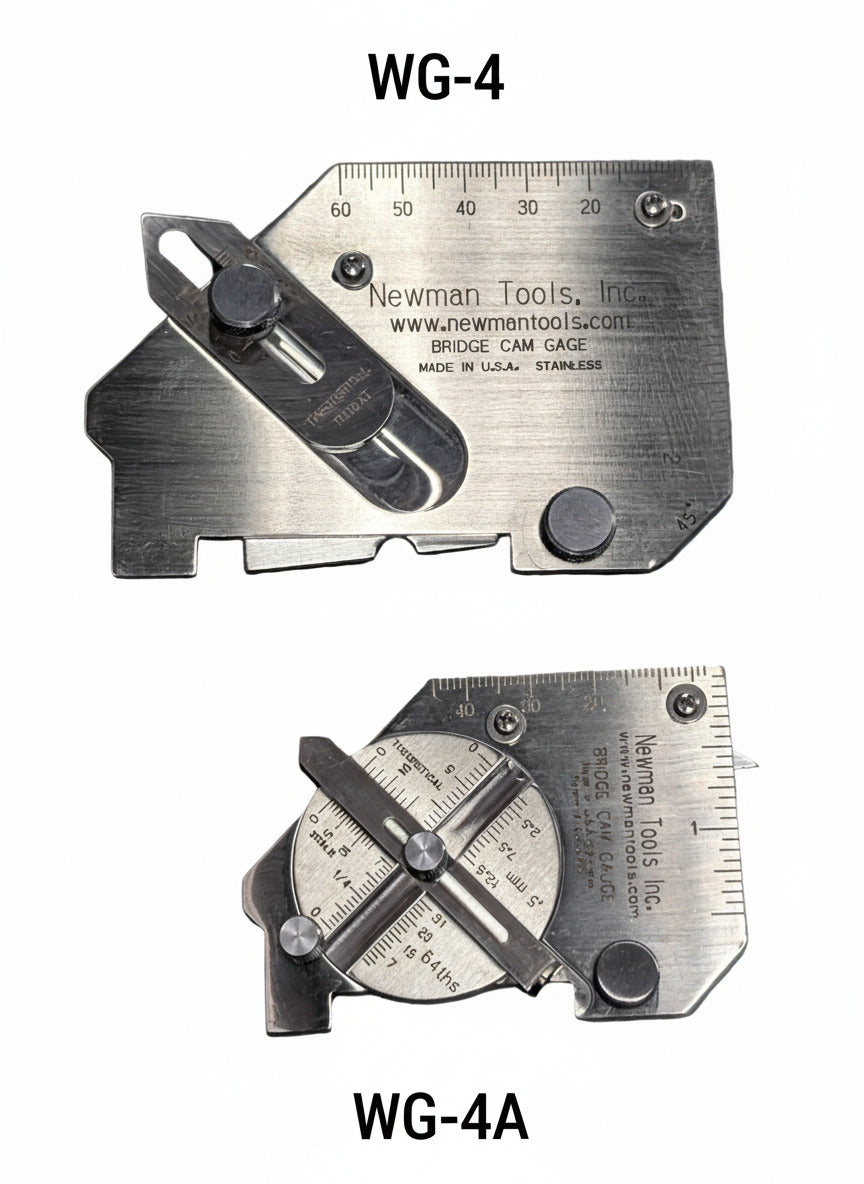

The Bridge Cam Gauge is a unique, versatile instrument for the inspection of welded surfaces and joints. This is a smaller pocket sized version.
Product Information
- Angle of Preparation, 0° to 60°
- Excess Weld Metal (capping size)
- Depth of Undercut by 1/32″
- Depth of Pitting by 1/32″
- Fillet Weld Throat Size (1/64″ or .5mm, Theoretical & Actual)
- Fillet Weld Leg Length
- Misalignment (High-Low)
- All Stainless Steel Construction
