Six Lobe Rotary Broaches .500" Shank
Please allow 1-2 weeks to ship outside of USA
SIX LOBE BROACHES
Also known as Torx-like or hexalobular Rotary Broaches. Most standard size Six Lobe Torx-like Rotary Broach Tools. Six Lobe Rotary Broaches conform with ISO 10664 and can be produced in special sizes and custom lengths. They can also be made in a variety of materials and coatings.
1/2" Shank

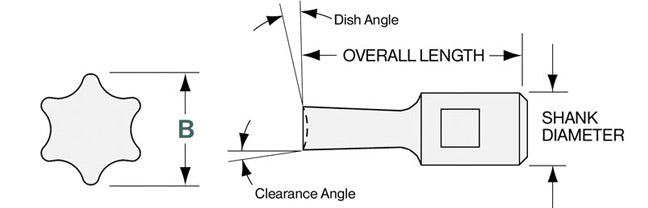

DIAMETER: .500" Shank Diameter
OVERALL LENGTH: 1.75”
1.75 OVERALL LENGTH
| T Size | B | Part # |
|---|---|---|
| T8 Six Lobe Broach | .0954 | Broach-508-08 |
| T9 Six Lobe Broach | .1028 | Broach-508-09 |
| T10 Six Lobe Broach | .1123 | Broach-508-10 |
| T15 Six Lobe Broach | .1333 | Broach-508-15 |
| T20 Six Lobe Broach | .1563 | Broach-508-20 |
| T25 Six Lobe Broach | .1798 | Broach-508-25 |
| T27 Six Lobe Broach | .2018 | Broach-508-27 |
| T30 Six Lobe Broach | .2228 | Broach-508-30 |
| T40 Six Lobe Broach | .2683 | Broach-508-40 |
| T45 Six Lobe Broach | .3180 | Broach-508-45 |
| T50 Six Lobe Broach | .3540 | Broach-508-50 |
