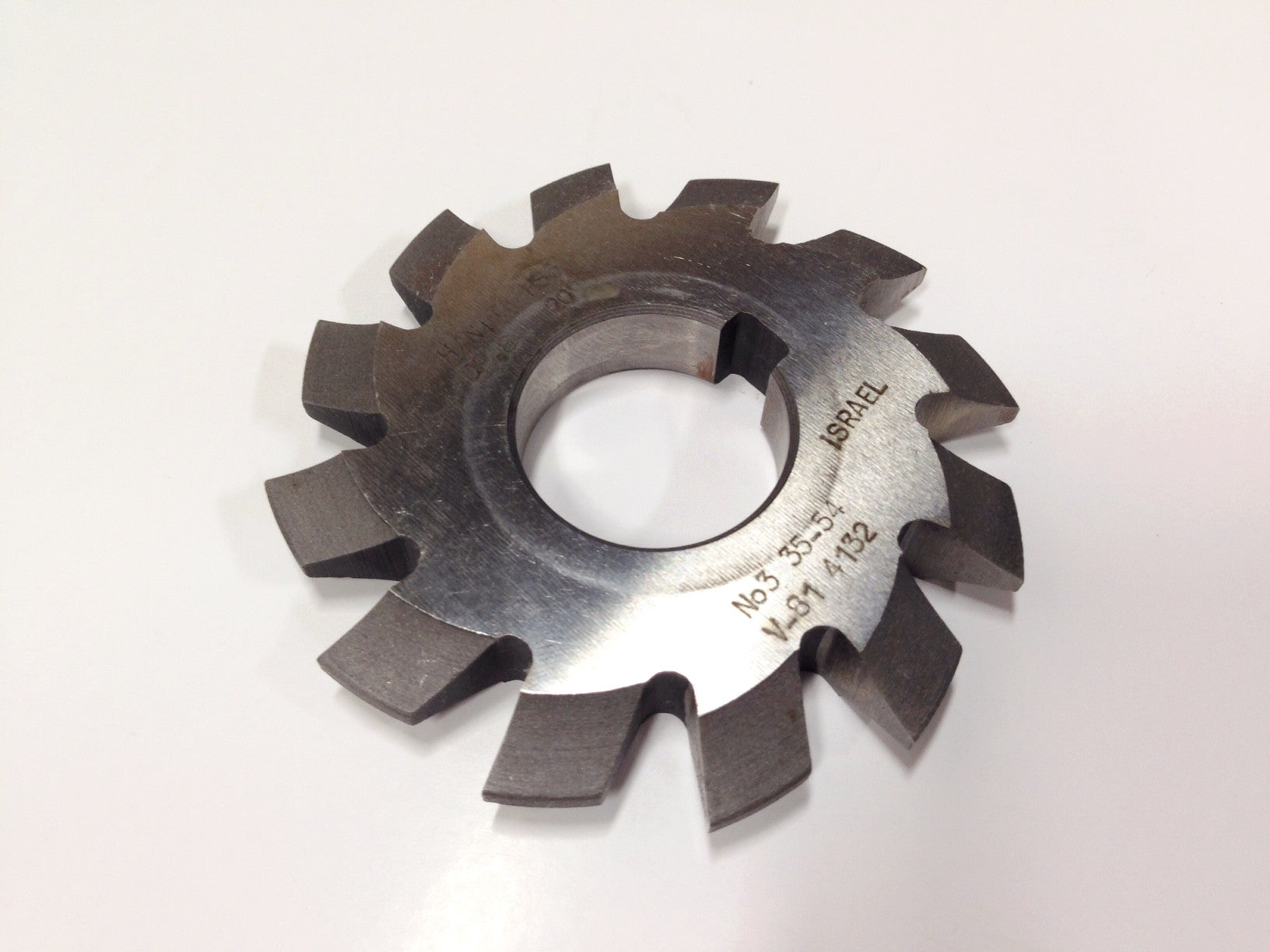

M3, 20°
Please select a cutter number (1-8) from the pull down menu.
Gear cutters are sold individually, not as a set
Module Pitch, 20° pressure angle
| Module | Diameter of cutter | Diameter of bore |
| 0.50 | 40 | 16 |
| 0.75 | 40 | 16 |
| 1.0 | 50 | 16 |
| 1.25 | 50 | 16 |
| 1.50 | 60 | 22 |
| 1.75 | 60 | 22 |
| 2.0 | 60 | 22 |
| 2.25 | 60 | 22 |
| 2.50 | 65 | 22 |
| 2.75 | 70 | 27 |
| 3.0 | 70 | 27 |
| 3.25 | 75 | 27 |
| 3.50 | 75 | 27 |
| 3.75 | 80 | 27 |
| 4.0 | 80 | 27 |
| 4.25 | 86 | 27 |
| 4.50 | 86 | 27 |
| 4.75 | 90 | 27 |
| 5.0 | 90 | 32 |
| 5.50 | 95 | 32 |
| 6.0 | 100 | 32 |
| 6.50 | 105 | 32 |
| 7.0 | 105 | 32 |
| 8.0 | 110 | 32 |
Range of Cutters for metric module gear cutters
| Cutter Number | Cuts Gear tooth range |
| 1 | 12-13 |
| 2 | 14-16 |
| 3 | 17-20 |
| 4 | 21-25 |
| 5 | 26-34 |
| 6 | 35-54 |
| 7 | 55-134 |
| 8 | 135- |
