Class Z Metric Pin Gage Sets

* Please allow 1 week to ship *

The Meyer Gage Class Z gage pin will meet or exceed the requirements of Class ZZ, and can replace the Class ZZ in any situation or application.

Scroll down for more info on the sets

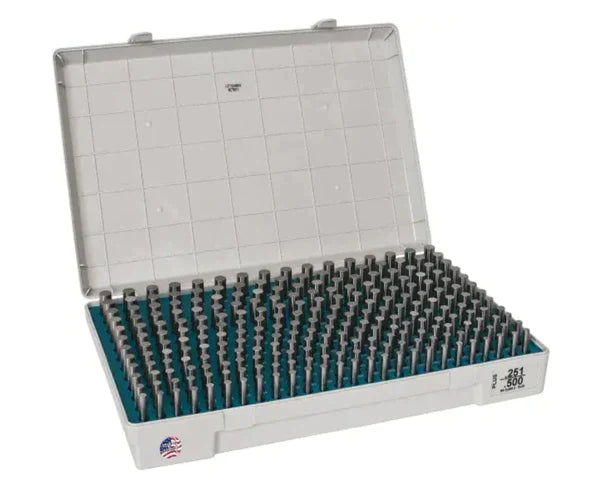

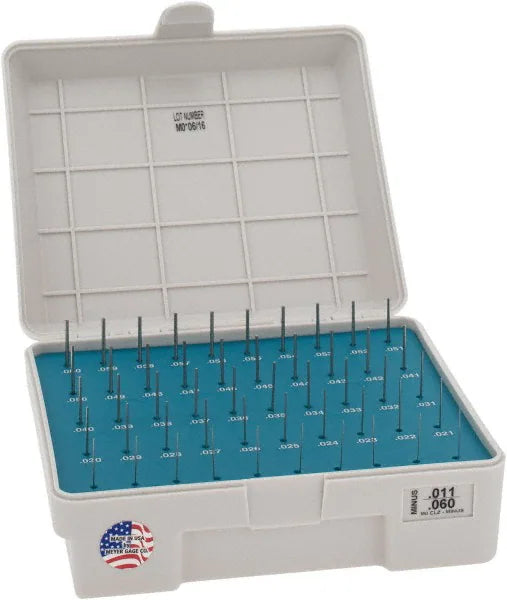

CLASS Z METRIC PIN GAGE SETS & LIBRARIES
Just look at this selection of Metric gage pin sets. If we don’t make it you probably don’t need it! These sets have all the features of our English sets, but provide the finer increments in size that you just can’t get by converting English to Metric.

FEATURES:

• All gages and sets are traceable to N.I.S.T.
• Boxes and gages both marked
• Size and serial number laser etched on each piece (M-O not etched)
• Material: 52100 Bearing Steel
• No sharp edges
• 51mm overall length
• All sets in .02mm increments

USES:

• Checking locations
• Measuring hole sizes and depth
• GO & NO/GO gaging
• Setting micrometers
• Checking distances between holes

FINISH:

• Centerless lapped
• Each gage is inspected and has a 8 microfinish or better
• Heat treated to a hardness of 60-62 Rockwell C
• All metric gages with .0025mm tolerance limit
