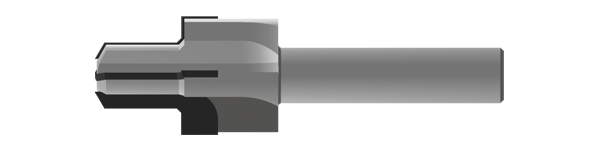

British Standard Parallel Pipe Port Contour Cutters

British Standard Parallel Pipe Port Contour Cutters

$293.60 USD

British Standard Parallel Pipe Port Contour Cutters

PT-BSPP




  • Port Tools are ground between centers to ensure absolute concentricity.
  • They are made from heat-treated alloy steel with brazed carbide inserts.
  • They are designed to enlarge a pre-drilled hole and easily produce a complex form.
  • Port Tools can be used for both lathe and mill applications.
British Standard Parallel Pipe port tools cut the minor thread diameter, the 45º angle, and the spot face.

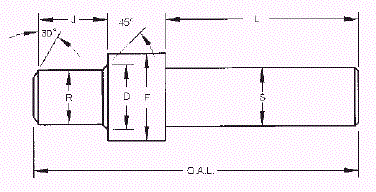

PART # D F J L R S O.A.L. THREAD
PT-BSPP-1/8 .398 .719 .565 2.00 .345 .500 3.62 1/8 BSPP
PT-BSPP-1/4 .533 .938 .683 2.00 .459 .500 3.62 1/4 BSPP
PT-BSPP-3/8 .671 1.063 .683 2.00 .597 .500 3.62 3/8 BSPP
PT-BSPP-1/2 .840 1.250 .801 2.00 .741 .750 3.62 1/2 BSPP

PT-BSPP-3/4 1.055 1.500 .880 2.50 .958 .750 4.12 3/4 BSPP
PT-BSPP-1.0 1.325 1.875 .998 2.50 1.201 1.000 4.12 1.0 BSPP
PT-BSPP-1-1/4 1.665 2.313 1.078 2.50 1.541 1.000 4.12 1 1/4 BSPP
PT-BSPP-1-1/2 1.897 2.563 1.078 2.50 1.774 1.000 4.38 1 1/2 BSPP
