Silvent MJ5 Stainless Nozzle

Silvent MJ5 Stainless Nozzle

$110.00 USD

Please allow up to 1 week to ship

SIL.MJ5: micro-nozzle of stainless steel with a central hole surrounded by slots. Generates a concentrated air stream while limiting both sound level and air consumption to a minimum. Small dimensions make this nozzle suitable for incorporation into most machine designs. Meets EU Machine Directive stipulations on airborne noise in machines.

Specifications

SI units

SPECIAL ORDER

PLEASE CALL

US units
Blowing force 1.8 N 6.4 oz
Air consumption 10 Nm³/h 5.9 scfm
Sound level 79 dB(A)
Blowing pattern Concentrated
Connection M5x0.5
Connection type Male

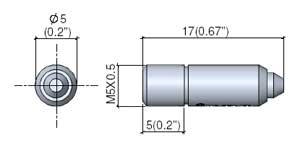

Dimensions Ø5x17 mm Ø0.20x0.67 inch
Material Stainless steel
Weight 0.002 kg 0.004 lbs
Max temp 400 °C 752 °F
Max operating pressure 1.0 MPa 143.0 psi

Benefits

Replace open pipe 2.5 mm 3/32 inch
Noise reduction [dB(A)] 8 dB(A) 43 %
Air/cost savings [Nm³/h] 2 Nm³/h 17 %
Meet the EU Machine directives Yes

Blowing properties at different pressures

SI units (kPa) 200 400 600 800 1000
Blowing force (N) 0.7 1.5 2.1 2.9 3.6
Air consumption (Nm³/h) 4.5 7.9 11.4 14.8 18.2
Sound level (dB(A)) 72.3 77.6 80.7 84.5 86.0
US units (psi) 40 60 80 100 120
Blowing force (oz) 3.5 5.3 7.0 8.8 10.5
Air consumption (scfm) 3.4 4.8 6.2 7.6 9.0
Sound level (dB(A)) 74.8 78.4 80.8 82.8 84.3

Air cone patterns and velocity distribution

SI units (mm) 50 100 200 300 400 500
Blowing pattern (ø) 13 27 53 80 106 133
Velocity (m/s) 132 105 58 41 37 34
US units (inch) 2 4 8 12 16 20
Blowing pattern (ø) 0.51 1.06 2.09 3.15 4.17 5.24
Velocity (ft/s) 433 344 190 135 121 111
