Silvent 941 Stainless Nozzle

  • $322.00 USD


Please allow up to 1 week to ship

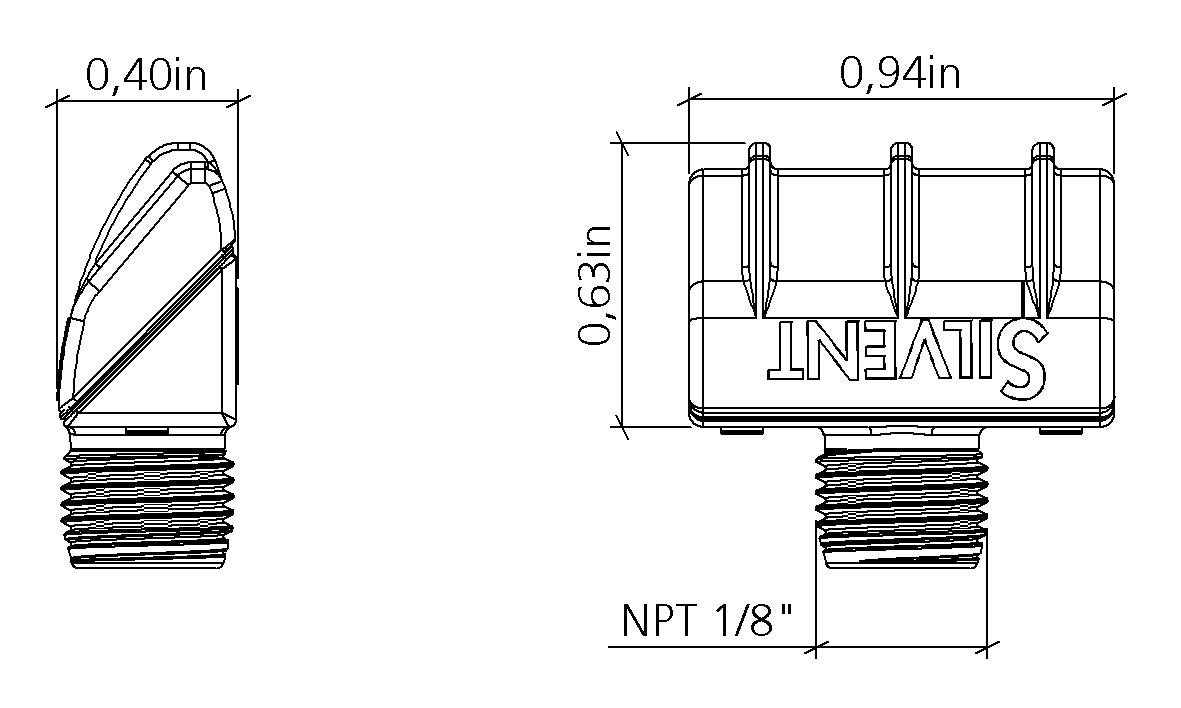

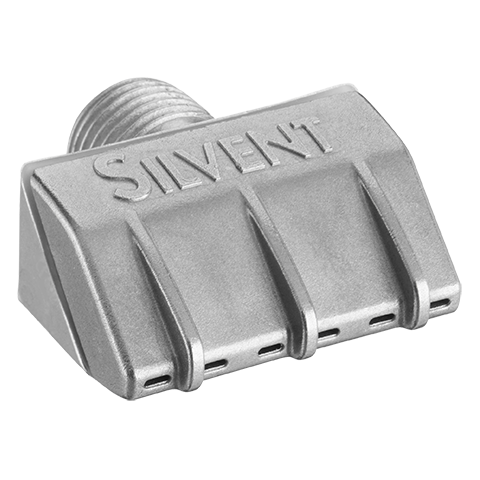

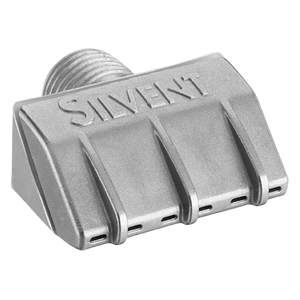

SIL.941 is a small flat nozzle in stainless steel. The nozzle generates a wide thin air stream. Due to its small dimensions, the nozzle is very suitable for machine designs with limited space. The SILVENT 941 is also commonly used in small, silent and efficient custom made air knifes. The Silvent technology makes it possible to combine efficient and silent blowing.



Technical data (US)

Replace open pipe Ø (inch) 5/32
Blowing force 12.0 oz
Air consumption (scfm) 10.6
Sound level (dB(A)) 78
Nozzle technology Slot
Material (nozzle) 1.4404 (316L)
Connection NPT 1/8"
Connection type Male
Weight (lbs) 0.033
Max temp. (°F) 752
Max op. pressure (psi) 145

Benefits when replacing an open pipe

Replace open pipe Ø (inch) 5/32
Noise reduction 17 [dB(A)] 69%
Energy savings 7.1 [scfm] 40%

Material specification: EN 1.4404

Blowing properties at different pressures

Pressure (psi) 40 60 80 100 120
Blowing force (oz) 7.9 10.8 13.7 16.6 19.4
Air consumption (scfm) 7.7 9.7 11.6 13.6 15.5
Sound level (dB(A)) 72.8 76.4 79.0 80.8 81.6

Blowing coverage

Blowing dist. (inch) Blowing coverage (inch)
2 1.38
4 2.36
8 3.54
12 4.72
16 7.09
20 7.87
