MS33649 - Reamer Pilot Port Contour Cutters

MS33649 - Reamer Pilot Port Contour Cutters

$306.36 USD

Port Cutters MS33649-R - Reamer Pilot

( specs AS5202 and AS1171 )



Reamer Pilot



  • Port Tools are ground between centers to ensure absolute concentricity.
  • They are made from heat-treated alloy steel with brazed carbide inserts.
  • They are designed to enlarge a pre-drilled hole and easily produce a complex form.
  • Port Tools can be used for both lathe and mill applications.

MS33649 port tools come in two different styles. With the solid pilot tool, the minor
diameter must be cut to size before the tool can be used. This tool excels when the thread
depth deviates from standard. The reamer pilot tool cuts the minor thread diameter to size.
Also know as the AS5202.

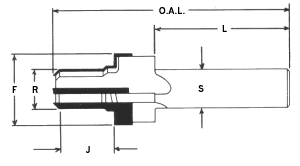

TUBE

THREAD

L

S

F

Reamer Pilot











R

J

O.A.L.

 Part NUMBER

1/8"

5/16"-24

1-3/4"

1/2"

.742

.276

.610

3.00

MS33649-2R

3/16"

3/8"-24

1-3/4"

1/2"

.805

.339

.610

3.00

MS33649-3R

1/4"

7/16"-20

1-7/8"

1/2"

.888

.393

.675

3.12

MS33649-4R

5/16"

1/2"-20

1-7/8"

1/2"

.950

.455

.675

3.12

MS33649-5R

3/8"

9/16"-18

1 7/8"

1/2"

1.012

.513

.730

3.38

MS33649-6R



















7/16"

5/8"-18

1 7/8"

1/2"

1.105

.575

.745

3.38

MS33649-7R

1/2"

3/4"-16

2 1/8"

3/4"

1.240

.693

.855

3.84

MS33649-8R

9/16"

13/16"-16

2 1/8"

3/4"

1.30

.758

.875

3.84

MS33649-9R

5/8"

7/8"-14

2 1/8"

3/4"

1.415

.810

.950

3.94

MS33649-10R

11/16"

1"-12

2 1/8"

3/4"

1.500

.952

1.080

4.12

MS33649-11R



















3/4"

1 1/16"-12

2 1/8"

3/4"

1.665

.985

1.080

4.12

MS33649-12R

7/8"

1 3/16"-12

2 1/4"

1"

1.790

1.112

1.080

4.37

MS33649-14R

1"

1 5/16"-12

2 1/4"

1"

1.965

1.235

1.080

4.37

MS33649-16R

1 1/8"

1 1/2"-12

2 1/4"

1"

2.090

1.425

1.130

4.53

MS33649-18R

1 1/4"

1 5/8"-12

2 1/4"

1"

2.310

1.549

1.130

4.54

MS33649-20R



















1 1/2"

1 7/8"-12

2 1/4"

1"

2.628

1.799

1.140

4.54

MS33649-24R

1 3/4"

2 1/4"-12

2 1/2"

1 1/4"

3.050

2.174

1.270

4.92

MS33649-28R

2"

2 1/2"-12

2 1/2"

1 1/4"

3.520

2.424

1.400

5.15

MS33649-32R
