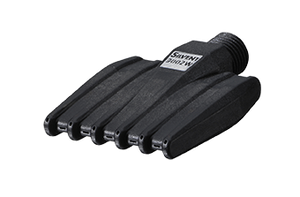

Silvent 9002W Flat Nozzle

Silvent 9002W Flat Nozzle

$209.00 USD

    Please allow up to 1 week to ship

    SIL.9002W: an energy-efficient flat nozzle that generates a strong, efficient blowing force at an exceptionally low noise level. Compressed air is optimally used in this flat nozzle, which through its unique design introduces a completely new blowing technology feature. The aerodynamic nozzle design achieves the effect by maximizing entrainment of air. Each orifice is also uniquely designed to optimize the entrainment area. The air nozzle – SILVENT 9002W – is made exclusively of Zytel, a high-performance material without which the unique and truly complex Laval orifices would not be possible. These small orifices combined with the aerodynamic slots of the nozzle provide high efficiency. Fully complies with EU Machine Directive noise limitations and OSHA safety regulations.

    Specifications

    SI units US units
    Blowing force 6.0 N 1.3 lbs
    Air consumption 30.0 Nm³/h 17.7 scfm
    Sound level 80 dB(A)
    Blowing pattern Flat
    Connection G 1/4" 1/4"-18 NPT
    Connection type Male
    Dimensions 47.2x17.6x64 mm 1.86x0.69x2.52 inch
    Material Zytel
    Weight 0.025 kg 0.055 lbs
    Max temp 180 °C 356 °F
    Max operating pressure 1.0 MPa 143.0 psi

    Benefits

    Replace open pipe 6 mm 1/4 inch
    Noise reduction [dB(A)] 22 dB(A) 78 %
    Air/cost savings [Nm³/h] 37 Nm³/h 55 scfm
    Meet the EU Machine directives Yes

    Blowing properties at different pressures

    SI units (kPa) 200 400 600 800 1000
    Blowing force (N) 2.5 4.9 7.1 9.3 11.5
    Air consumption (Nm³/h) 16.0 25.0 34.0 43.0 52.0
    Sound level (dB(A)) 71.3 78.0 82.0 85.0 87.2
    US units (psi) 40 60 80 100 120
    Blowing force (oz) 13.1 18.5 23.8 29.2 34.5
    Air consumption (scfm) 11.5 15.5 19.5 23.5 27.5
    Sound level (dB(A)) 74.7 78.6 81.2 83.4 85.1

    Air cone patterns and velocity distribution

    SI units (mm) 50 100 200 300 400 500
    Blowing pattern (width) 80 100 140 180 220 260
    Blowing pattern (height) 45 65 105 145 185 225
    Velocity (m/s) 126 105 60 42 37 34
    US units (inch) 2 4 8 12 16 20
    Blowing pattern (width) 3.15 3.94 5.51 7.09 8.66 10.24
    Blowing pattern (height) 1.77 2.56 4.13 5.71 7.28 8.86
    Velocity (ft/s) 413 344 197 138 121 112
